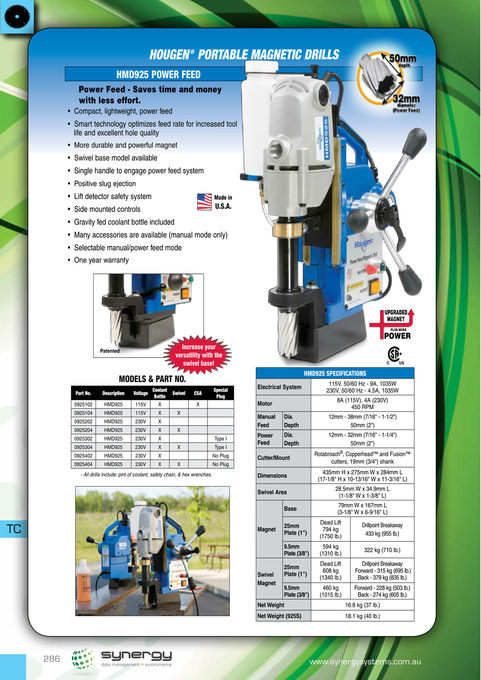

Hougen ® portable magnetic drills HMD925 POwer feeD Power Feed - Saves time and money with less effort. • Compact, lightweight, power feed • Smart technology optimizes feed rate for increased tool life and excellent hole quality • More durable and powerful magnet • Swivel base model available • Single handle to engage power feed system • Positive slug ejection • Lift detector safety system • Side mounted controls • Gravity fed coolant bottle included Made in U.S.a. • Many accessories are available (manual mode only) • Selectable manual/power feed mode • One year warranty Patented Increase your versatility with the swivel base! HMD925 SPecificatiOnS CSA X X X Type I X X Type I No Plug No Plug Special Plug MODelS & Part nO. Part No. 0925102 0925104 0925202 0925204 0925302 0925304 0925402 0925404 Description HMD925 HMD925 HMD925 HMD925 HMD925 HMD925 HMD925 HMD925 Voltage 115V 115V 230V 230V 230V 230V 230V 230V Coolant Bottle X X X X X X X X Swivel Electrical System Motor Manual Feed Power Feed Dia. Depth Dia. Depth 115V, 50/60 Hz - 9A, 1035W 230V, 50/60 Hz - 4.5A, 1035W 8A (115V), 4A (230V) 450 RPM 12mm - 38mm (7/16" - 1-1/2") 50mm (2") 12mm - 32mm (7/16" - 1-1/4") 50mm (2") Rotabroach®, Copperhead™ and Fusion™ cutters, 19mm (3/4") shank 435mm H x 275mm W x 284mm L (17-1/8" H x 10-13/16" W x 11-3/16" L) 28.5mm W x 34.9mm L (1-1/8" W x 1-3/8" L) 79mm W x 167mm L (3-1/8" W x 6-9/16" L) Dead Lift 794 kg (1750 lb.) 594 kg (1310 lb.) Dead Lift 608 kg (1340 lb.) 460 kg (1015 lb.) Drillpoint Breakaway 433 kg (955 lb.) 322 kg (710 lb.) Drillpoint Breakaway Forward - 315 kg (695 lb.) Back - 379 kg (835 lb.) Forward - 228 kg (503 lb.) Back - 274 kg (605 lb.) 16.8 kg (37 lb.) 18.1 kg (40 lb.) Cutter/Mount Dimensions Swivel Area Base - All drills include: pint of coolant, safety chain, & hex wrenches. TC Magnet 25mm Plate (1") 9.5mm Plate (3/8") Swivel Magnet 25mm Plate (1") 9.5mm Plate (3/8") Net Weight Net Weight (925S) 286 www.synergysystems.com.au
