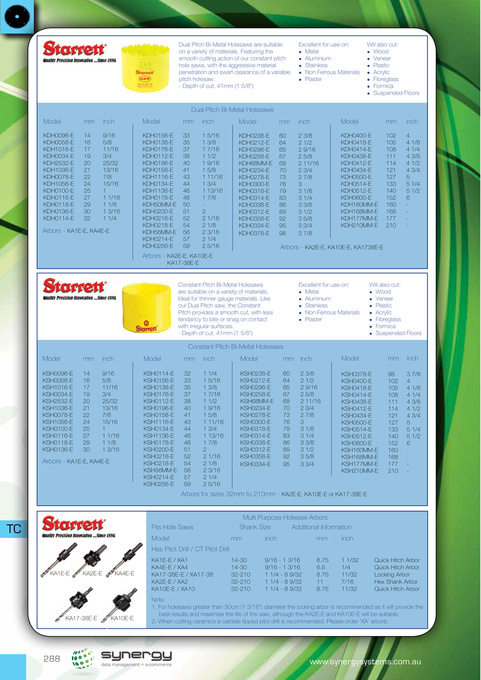

Dual Pitch Bi-Metal Holesaws are suitable on a variety of materials. Featuring the smooth cutting action of our constant pitch hole saws, with the aggressive material penetration and swarf clearance of a variable pitch holesaw. - Depth of cut, 41mm (1 5/8”) Excellent for use on: l Metal l Aluminium l Stainless l Non Ferrous Materials l Plaster Will also cut: l Wood l Veneer l Plastic l Acrylic l Fibreglass l Formica l Suspended Floors Dual Pitch Bi-Metal Holesaws Model KDH0096-E KDH0058-E KDH1016-E KDH0034-E KDH2532-E KDH1036-E KDH0078-E KDH1056-E KDH0100-E KDH0116-E KDH0118-E KDH0136-E KDH0114-E mm 14 16 17 19 20 21 22 24 25 27 29 30 32 inch 9/16 5/8 11/16 3/4 25/32 13/16 7/8 15/16 1 1 1/16 1 1/8 1 3/16 1 1/4 Model KDH0156-E KDH0138-E KDH0176-E KDH0112-E KDH0196-E KDH0158-E KDH1116-E KDH0134-E KDH1136-E KDH0178-E KDH50MM-E KDH0200-E KDH0216-E KDH0218-E KDH56MM-E KDH0214-E KDH0256-E mm 33 35 37 38 40 41 43 44 46 48 50 51 52 54 56 57 59 inch 1 5/16 1 3/8 1 7/16 1 1/2 1 9/16 1 5/8 1 11/16 1 3/4 1 13/16 1 7/8 2 2 1/16 2 1/8 2 3/16 2 1/4 2 5/16 Model KDH0238-E KDH0212-E KDH0296-E KDH0258-E KDH68MM-E KDH0234-E KDH0278-E KDH0300-E KDH0318-E KDH0314-E KDH0338-E KDH0312-E KDH0358-E KDH0334-E KDH0378-E mm 60 64 65 67 68 70 73 76 79 83 86 89 92 95 98 inch 2 3/8 2 1/2 2 9/16 2 5/8 2 11/16 2 3/4 2 7/8 3 3 1/8 3 1/4 3 3/8 3 1/2 3 5/8 3 3/4 3 7/8 Model KDH0400-E KDH0418-E KDH0414-E KDH0438-E KDH0412-E KDH0434-E KDH0500-E KDH0514-E KDH0512-E KDH0600-E KDH160MM-E KDH168MM-E KDH177MM-E KDH210MM-E mm 102 105 108 111 114 121 127 133 140 152 160 168 177 210 inch 4 4 1/8 4 1/4 4 3/8 4 1/2 4 3/4 5 5 1/4 5 1/2 6 - Arbors - KA1E-E, KA4E-E Arbors - KA2E-E, KA10E-E, KA1738E-E Arbors - KA2E-E, KA10E-E KA17-38E-E Constant Pitch Bi-Metal Holesaws are suitable on a variety of materials. Ideal for thinner gauge materials. Like our Dual Pitch saw, the Constant Pitch provides a smooth cut, with less tendancy to bite or snag on contact with irregular surfaces. - Depth of cut, 41mm (1 5/8”) Excellent for use on: l Metal l Aluminium l Stainless l Non Ferrous Materials l Plaster Will also cut: l Wood l Veneer l Plastic l Acrylic l Fibreglass l Formica l Suspended Floors Constant Pitch Bi-Metal Holesaws Model KSH0096-E KSH0058-E KSH1016-E KSH0034-E KSH2532-E KSH1036-E KSH0078-E KSH1056-E KSH0100-E KSH0116-E KSH0118-E KSH0136-E mm 14 16 17 19 20 21 22 24 25 27 29 30 inch 9/16 5/8 11/16 3/4 25/32 13/16 7/8 15/16 1 1 1/16 1 1/8 1 3/16 Model KSH0114-E KSH0156-E KSH0138-E KSH0176-E KSH0112-E KSH0196-E KSH0158-E KSH1116-E KSH0134-E KSH1136-E KSH0178-E KSH0200-E KSH0216-E KSH0218-E KSH56MM-E KSH0214-E KSH0256-E mm 32 33 35 37 38 40 41 43 44 46 48 51 52 54 56 57 59 inch 1 1/4 1 5/16 1 3/8 1 7/16 1 1/2 1 9/16 1 5/8 1 11/16 1 3/4 1 13/16 1 7/8 2 2 1/16 2 1/8 2 3/16 2 1/4 2 5/16 Model KSH0238-E KSH0212-E KSH0296-E KSH0258-E KSH68MM-E KSH0234-E KSH0278-E KSH0300-E KSH0318-E KSH0314-E KSH0338-E KSH0312-E KSH0358-E KSH0334-E mm 60 64 65 67 68 70 73 76 79 83 86 89 92 95 inch 2 3/8 2 1/2 2 9/16 2 5/8 2 11/16 2 3/4 2 7/8 3 3 1/8 3 1/4 3 3/8 3 1/2 3 5/8 3 3/4 Model KSH0378-E KSH0400-E KSH0418-E KSH0414-E KSH0438-E KSH0412-E KSH0434-E KSH0500-E KSH0514-E KSH0512-E KSH0600-E KSH160MM-E KSH168MM-E KSH177MM-E KSH210MM-E mm 98 102 105 108 111 114 121 127 133 140 152 160 168 177 210 inch 3 7/8 4 4 1/8 4 1/4 4 3/8 4 1/2 4 3/4 5 5 1/4 5 1/2 6 - Arbors - KA1E-E, KA4E-E Arbors for sizes 32mm to 210mm - KA2E-E, KA10E-E or KA17-38E-E Multi Purpose Holesaw Arbors Shank Size Additional Information mm 14-30 14-30 32-210 32-210 32-210 TC Fits Hole Saws Model Hss Pilot Drill / CT Pilot Drill KA1E-E / XA1 KA4E-E / XA4 KA17-38E-E / XA17-38 KA2E-E / XA2 KA10E-E / XA10 inch 9/16 - 1 3/16 9/16 - 1 3/16 1 1/4 - 8 9/32 1 1/4 - 8 9/32 1 1/4 - 8 9/32 mm 8.75 6.5 8.75 11 8.75 inch 1 1/32 1/4 11/32 7/16 11/32 Quick Hitch Arbor Quick Hitch Arbor Locking Arbor Hex Shank Arbor Quick Hitch Arbor KA1E-E KA2E-E KA4E-E KA17-38E-E KA10E-E Note: 1. For holesaws greater than 30cm (1 3/16”) diameter the locking arbor is recommended as it will provide the best results and maximise the life of the saw, although the KA2E-E and KA10E-E will be suitable. 2. When cutting ceramics a carbide tipped pilot drill is recommended. Please order ’XA’ arbors. 288 www.synergysystems.com.au
