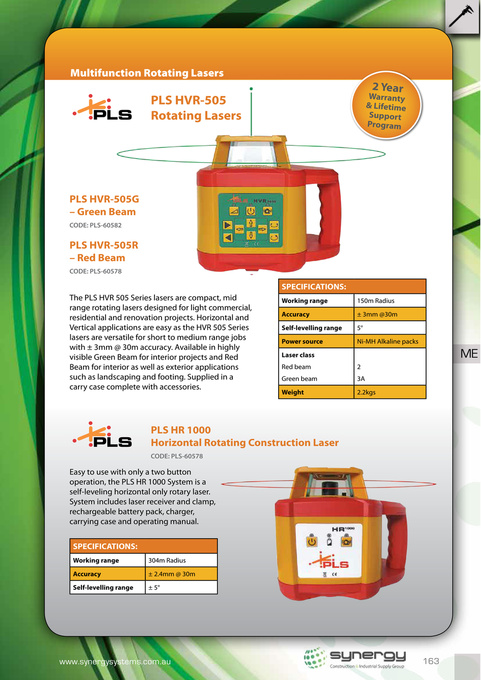

Multifunction Rotating Lasers
PLS HVR-505 Rotating Lasers
Warranty & Lifetime Support Program
2 Year
PLS HVR-505G – Green Beam
CODE: PLS-60582
PLS HVR-505R – Red Beam
CODE: PLS-60578
SPECIFICATIONS: The PLS HVR 505 Series lasers are compact, mid range rotating lasers designed for light commercial, residential and renovation projects. Horizontal and Vertical applications are easy as the HVR 505 Series lasers are versatile for short to medium range jobs with ± 3mm @ 30m accuracy. Available in highly visible Green Beam for interior projects and Red Beam for interior as well as exterior applications such as landscaping and footing. Supplied in a carry case complete with accessories.
Working range Accuracy Self-levelling range Power source Laser class Red beam Green beam Weight 2 3A 2.2kgs 150m Radius ± 3mm @30m 5° Ni-MH Alkaline packs
ME
PLS HR 1000 Horizontal Rotating Construction Laser
CODE: PLS-60578
Easy to use with only a two button operation, the PLS HR 1000 System is a self-leveling horizontal only rotary laser. System includes laser receiver and clamp, rechargeable battery pack, charger, carrying case and operating manual. SPECIFICATIONS:
Working range Accuracy Self-levelling range 304m Radius ± 2.4mm @ 30m ± 5°
www.synergysystems.com.au
163
