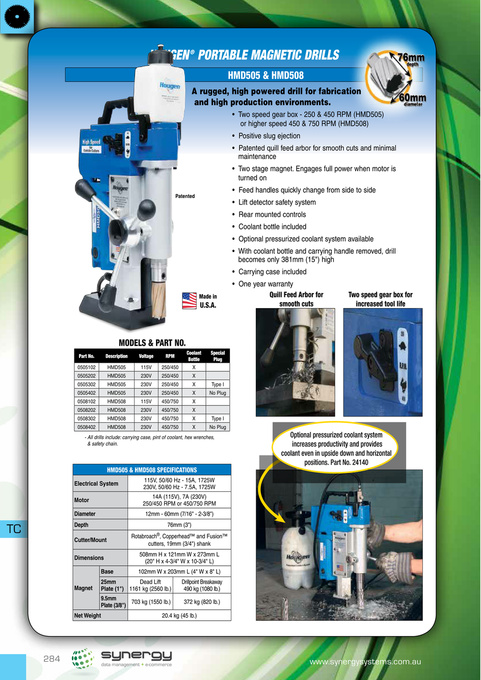

Hougen ® portable magnetic drills HMD505 & HMD508 A rugged, high powered drill for fabrication and high production environments. • Two speed gear box - 250 & 450 RPM (HMD505) or higher speed 450 & 750 RPM (HMD508) • Positive slug ejection • Patented quill feed arbor for smooth cuts and minimal maintenance • Two stage magnet. Engages full power when motor is turned on Patented • Feed handles quickly change from side to side • Lift detector safety system • Rear mounted controls • Coolant bottle included • Optional pressurized coolant system available • With coolant bottle and carrying handle removed, drill becomes only 381mm (15") high • Carrying case included Made in U.S.a. • One year warranty Quill feed arbor for smooth cuts two speed gear box for increased tool life MODelS & Part nO. Part No. 0505102 0505202 0505302 0505402 0508102 0508202 0508302 0508402 Description HMD505 HMD505 HMD505 HMD505 HMD508 HMD508 HMD508 HMD508 Voltage 115V 230V 230V 230V 115V 230V 230V 230V RPM 250/450 250/450 250/450 250/450 450/750 450/750 450/750 450/750 Coolant Bottle X X X X X X X X Type I No Plug Type I No Plug Special Plug - All drills include: carrying case, pint of coolant, hex wrenches, & safety chain. HMD505 & HMD508 SPecificatiOnS Electrical System Motor Diameter 115V, 50/60 Hz - 15A, 1725W 230V, 50/60 Hz - 7.5A, 1725W 14A (115V), 7A (230V) 250/450 RPM or 450/750 RPM 12mm - 60mm (7/16" - 2-3/8") 76mm (3") Rotabroach®, Copperhead™ and Fusion™ cutters, 19mm (3/4") shank 508mm H x 121mm W x 273mm L (20" H x 4-3/4" W x 10-3/4" L) 102mm W x 203mm L (4" W x 8" L) Drillpoint Breakaway 490 kg (1080 lb.) 372 kg (820 lb.) Optional pressurized coolant system increases productivity and provides coolant even in upside down and horizontal positions. Part No. 24140 TC Depth Cutter/Mount Dimensions Base Magnet 25mm Dead Lift Plate (1") 1161 kg (2560 lb.) 9.5mm 703 kg (1550 lb.) Plate (3/8") Net Weight 20.4 kg (45 lb.) 284 www.synergysystems.com.au
