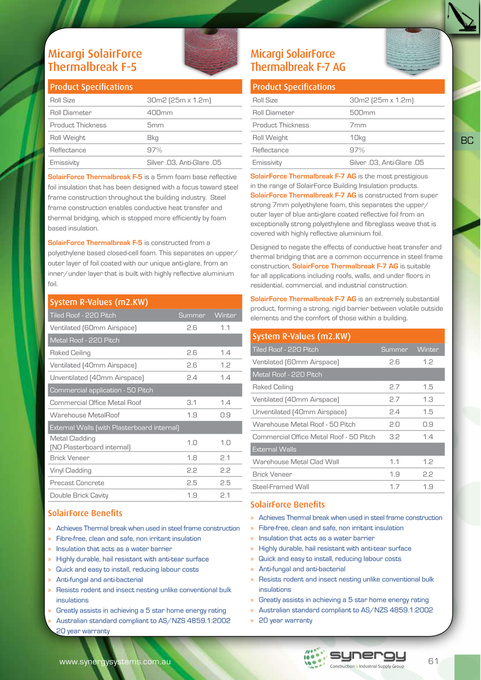

Micargi SolairForce Thermalbreak F-5 Product Specifications Roll Size Roll Diameter Product Thickness Roll Weight Reflectance Emissivity 30m2 (25m x 1.2m) 400mm 5mm 8kg 97% Silver .03, Anti-Glare .05 Micargi SolairForce Thermalbreak F-7 AG Product Specifications Roll Size Roll Diameter Product Thickness Roll Weight Reflectance Emissivity 30m2 (25m x 1.2m) 500mm 7mm 10kg 97% Silver .03, Anti-Glare .05 BC SolairForce Thermalbreak F-5 is a 5mm foam base reflective foil insulation that has been designed with a focus toward steel frame construction throughout the building industry. Steel frame construction enables conductive heat transfer and thermal bridging, which is stopped more efficiently by foam based insulation. SolairForce Thermalbreak F-5 is constructed from a polyethylene based closed-cell foam. This separates an upper/ outer layer of foil coated with our unique anti-glare, from an inner/under layer that is built with highly reflective aluminium foil. SolairForce Thermalbreak F-7 AG is the most prestigious in the range of SolairForce Building Insulation products. SolairForce Thermalbreak F-7 AG is constructed from super strong 7mm polyethylene foam, this separates the upper/ outer layer of blue anti-glare coated reflective foil from an exceptionally strong polyethylene and fibreglass weave that is covered with highly reflective aluminium foil. Designed to negate the effects of conductive heat transfer and thermal bridging that are a common occurrence in steel frame construction, SolairForce Thermalbreak F-7 AG is suitable for all applications including roofs, walls, and under floors in residential, commercial, and industrial construction. SolairForce Thermalbreak F-7 AG is an extremely substantial product, forming a strong, rigid barrier between volatile outside elements and the comfort of those within a building. System R-Values (m2.KW) Tiled Roof - 220 Pitch Ventilated (60mm Airspace) Metal Roof - 220 Pitch Raked Ceiling Ventilated (40mm Airspace) Unventilated (40mm Airspace) Commercial application - 50 Pitch Commercial Office Metal Roof Warehouse MetalRoof External Walls (with Plasterboard internal) Metal Cladding (NO Plasterboard internal) Brick Veneer Vinyl Cladding Precast Concrete Double Brick Cavity 3.1 1.9 1.4 0.9 2.6 2.6 2.4 1.4 1.2 1.4 Summer 2.6 Winter 1.1 System R-Values (m2.KW) Tiled Roof - 220 Pitch Ventilated (60mm Airspace) Metal Roof - 220 Pitch Raked Ceiling Ventilated (40mm Airspace) Unventilated (40mm Airspace) Warehouse Metal Roof - 50 Pitch Commercial Office Metal Roof - 50 Pitch External Walls Warehouse Metal Clad Wall Brick Veneer Steel-Framed Wall 1.1 1.9 1.7 1.2 2.2 1.9 2.7 2.7 2.4 2.0 3.2 1.5 1.3 1.5 0.9 1.4 Summer 2.6 Winter 1.2 1.0 1.8 2.2 2.5 1.9 1.0 2.1 2.2 2.5 2.1 SolairForce Benefits » » » » » » » Achieves Thermal break when used in steel frame construction Fibre-free, clean and safe, non irritant insulation Insulation that acts as a water barrier Highly durable, hail resistant with anti-tear surface Quick and easy to install, reducing labour costs Anti-fungal and anti-bacterial Resists rodent and insect nesting unlike conventional bulk insulations » Greatly assists in achieving a 5 star home energy rating » Australian standard compliant to AS/NZS 4859.1:2002 » 20 year warranty SolairForce Benefits » » » » » » » Achieves Thermal break when used in steel frame construction Fibre-free, clean and safe, non irritant insulation Insulation that acts as a water barrier Highly durable, hail resistant with anti-tear surface Quick and easy to install, reducing labour costs Anti-fungal and anti-bacterial Resists rodent and insect nesting unlike conventional bulk insulations » Greatly assists in achieving a 5 star home energy rating » Australian standard compliant to AS/NZS 4859.1:2002 » 20 year warranty www.synergysystems.com.au 61
