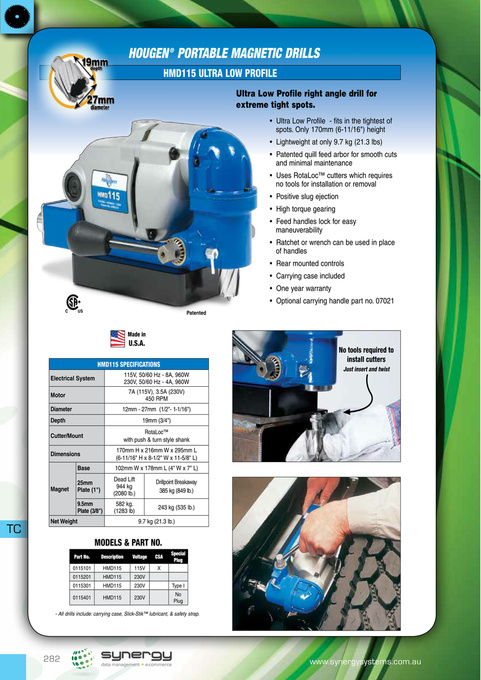

Hougen ® portable magnetic drills HMD115 Ultra lOw PrOfile Ultra Low Profile right angle drill for extreme tight spots. • Ultra Low Profile - fits in the tightest of spots. Only 170mm (6-11/16") height • Lightweight at only 9.7 kg (21.3 lbs) • Patented quill feed arbor for smooth cuts and minimal maintenance • Uses RotaLoc™ cutters which requires no tools for installation or removal • Positive slug ejection • High torque gearing • Feed handles lock for easy maneuverability • Ratchet or wrench can be used in place of handles • Rear mounted controls • Carrying case included • One year warranty • Optional carrying handle part no. 07021 Patented Made in U.S.a. HMD115 SPecificatiOnS Electrical System Motor Diameter Depth Cutter/Mount Dimensions Base Magnet 25mm Plate (1") 9.5mm Plate (3/8") 115V, 50/60 Hz - 8A, 960W 230V, 50/60 Hz - 4A, 960W 7A (115V), 3.5A (230V) 450 RPM 12mm - 27mm (1/2"- 1-1/16") 19mm (3/4") RotaLoc™ with push & turn style shank 170mm H x 216mm W x 295mm L (6-11/16" H x 8-1/2" W x 11-5/8" L) 102mm W x 178mm L (4" W x 7" L) Dead Lift 944 kg (2080 lb.) 582 kg. (1283 lb) Drillpoint Breakaway 385 kg (849 lb.) 243 kg (535 lb.) 9.7 kg (21.3 lb.) no tools required to install cutters Just insert and twist TC Net Weight MODelS & Part nO. Part No. 0115101 0115201 0115301 0115401 Description HMD115 HMD115 HMD115 HMD115 Voltage 115V 230V 230V 230V Type I No Plug CSA X Special Plug - All drills include: carrying case, Slick-Stik™ lubricant, & safety strap. 4 282 www.synergysystems.com.au
