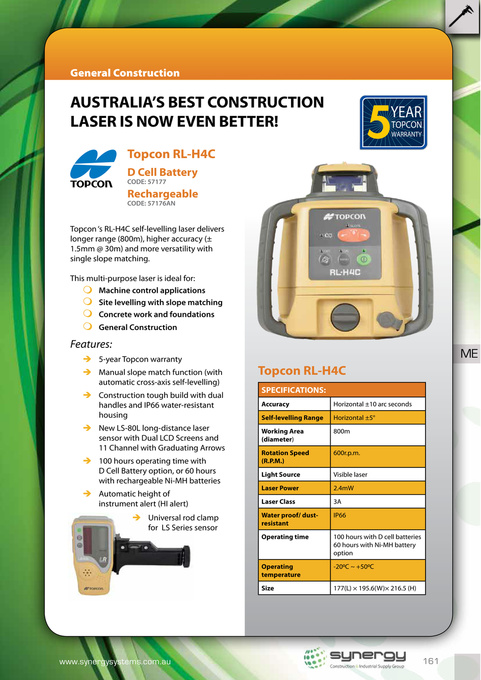

General Construction
AUSTRALIA’S BEST CONSTRUCTION LASER IS NOW EVEN BETTER!
Topcon RL-H4C
D Cell Battery
CODE: 57177
Rechargeable
CODE: 57176AN
Topcon ‘s RL-H4C self-levelling laser delivers longer range (800m), higher accuracy (± 1.5mm @ 30m) and more versatility with single slope matching. This multi-purpose laser is ideal for: Machine control applications Site levelling with slope matching Concrete work and foundations General Construction
Features:
5-year Topcon warranty Manual slope match function (with automatic cross-axis self-levelling) Construction tough build with dual handles and IP66 water-resistant housing New LS-80L long-distance laser sensor with Dual LCD Screens and 11 Channel with Graduating Arrows 100 hours operating time with D Cell Battery option, or 60 hours with rechargeable Ni-MH batteries Automatic height of instrument alert (HI alert) Universal rod clamp for LS Series sensor
ME
Topcon RL-H4C
SPECIFICATIONS:
Accuracy Self-levelling Range Working Area (diameter) Rotation Speed (R.P.M.) Light Source Laser Power Laser Class Water proof/ dustresistant Operating time Horizontal ±10 arc seconds Horizontal ±5° 800m 600r.p.m. Visible laser 2.4mW 3A IP66 100 hours with D cell batteries 60 hours with Ni-MH battery option -200C ~ +500C 177(L) × 195.6(W)× 216.5 (H)
Operating temperature Size
www.synergysystems.com.au
