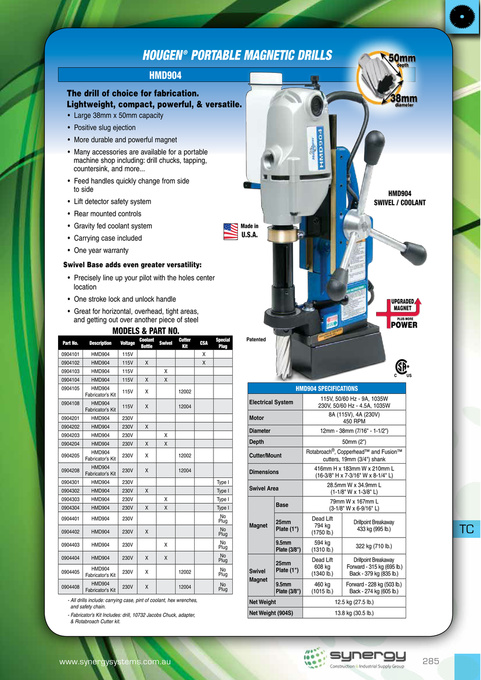

Hougen ® portable magnetic drills HMD904 The drill of choice for fabrication. Lightweight, compact, powerful, & versatile. • Large 38mm x 50mm capacity • Positive slug ejection • More durable and powerful magnet • Many accessories are available for a portable machine shop including: drill chucks, tapping, countersink, and more... • Feed handles quickly change from side to side • Lift detector safety system • Rear mounted controls • Gravity fed coolant system • Carrying case included • One year warranty Swivel Base adds even greater versatility: • Precisely line up your pilot with the holes center location • One stroke lock and unlock handle • Great for horizontal, overhead, tight areas, and getting out over another piece of steel Made in HMD904 Swivel / cOOlant U.S.a. MODelS & Part nO. Part No. 0904101 0904102 0904103 0904104 0904105 0904108 0904201 0904202 0904203 0904204 0904205 0904208 0904301 0904302 0904303 0904304 0904401 0904402 0904403 0904404 0904405 0904408 Description HMD904 HMD904 HMD904 HMD904 HMD904 Fabricator’s Kit HMD904 Fabricator’s Kit HMD904 HMD904 HMD904 HMD904 HMD904 Fabricator’s Kit HMD904 Fabricator’s Kit HMD904 HMD904 HMD904 HMD904 HMD904 HMD904 HMD904 HMD904 HMD904 Fabricator's Kit HMD904 Fabricator's Kit Voltage 115V 115V 115V 115V 115V 115V 230V 230V 230V 230V 230V 230V 230V 230V 230V 230V 230V 230V 230V 230V 230V 230V X X X X X X 12002 12004 X X X X X X X X X X 12002 12004 Type I Type I Type I Type I No Plug No Plug No Plug No Plug No Plug No Plug X X X X X X 12002 12004 Coolant Bottle Swivel Cutter Kit CSA X X Special Plug Patented HMD904 SPecificatiOnS Electrical System Motor Diameter Depth Cutter/Mount Dimensions Swivel Area Base Magnet 25mm Plate (1") 9.5mm Plate (3/8") Swivel Magnet 25mm Plate (1") 9.5mm Plate (3/8") 115V, 50/60 Hz - 9A, 1035W 230V, 50/60 Hz - 4.5A, 1035W 8A (115V), 4A (230V) 450 RPM 12mm - 38mm (7/16" - 1-1/2") 50mm (2") Rotabroach®, Copperhead™ and Fusion™ cutters, 19mm (3/4") shank 416mm H x 183mm W x 210mm L (16-3/8" H x 7-3/16" W x 8-1/4" L) 28.5mm W x 34.9mm L (1-1/8" W x 1-3/8" L) 79mm W x 167mm L (3-1/8" W x 6-9/16" L) Dead Lift 794 kg (1750 lb.) 594 kg (1310 lb.) Dead Lift 608 kg (1340 lb.) 460 kg (1015 lb.) Drillpoint Breakaway 433 kg (995 lb.) 322 kg (710 lb.) Drillpoint Breakaway Forward - 315 kg (695 lb.) Back - 379 kg (835 lb.) Forward - 228 kg (503 lb.) Back - 274 kg (605 lb.) 12.5 kg (27.5 lb.) 13.8 kg (30.5 lb.) TC - All drills include: carrying case, pint of coolant, hex wrenches, and safety chain. - Fabricator’s Kit Includes: drill, 10732 Jacobs Chuck, adapter, & Rotabroach Cutter kit. Net Weight Net Weight (904S) www.synergysystems.com.au 285
