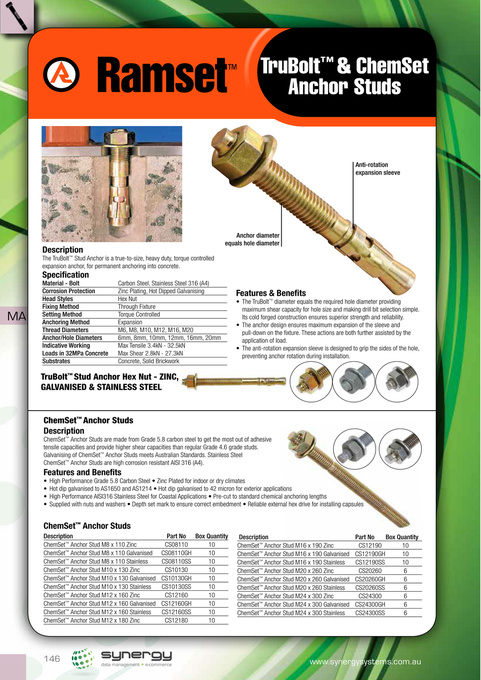

TruBolt™ & ChemSet Anchor Studs anti-rotation expansion sleeve Description anchor diameter equals hole diameter The TruBolt™ Stud Anchor is a true-to-size, heavy duty, torque controlled expansion anchor, for permanent anchoring into concrete. Specification MA material - Bolt Corrosion Protection Head Styles Fixing method Setting method anchoring method Thread Diameters anchor/Hole Diameters Indicative Working Loads in 32mPa Concrete Substrates Carbon Steel, Stainless Steel 316 (A4) Zinc Plating, Hot Dipped Galvanising Hex Nut Through Fixture Torque Controlled Expansion M6, M8, M10, M12, M16, M20 6mm, 8mm, 10mm, 12mm, 16mm, 20mm Max Tensile 3.4kN - 32.5kN Max Shear 2.8kN - 27.3kN Concrete, Solid Brickwork Features & Benefits • The TruBolt™ diameter equals the required hole diameter providing maximum shear capacity for hole size and making drill bit selection simple. Its cold forged construction ensures superior strength and reliability. • The anchor design ensures maximum expansion of the sleeve and pull-down on the fixture. These actions are both further assisted by the application of load. • The anti-rotation expansion sleeve is designed to grip the sides of the hole, preventing anchor rotation during installation. TruBolt™ Stud Anchor Hex Nut - ZINC, GALVANISED & STAINLESS STEEL ChemSet™ Anchor Studs Description ChemSet™ Anchor Studs are made from Grade 5.8 carbon steel to get the most out of adhesive tensile capacities and provide higher shear capacities than regular Grade 4.6 grade studs. Galvanising of ChemSet™ Anchor Studs meets Australian Standards. Stainless Steel ChemSet™ Anchor Studs are high corrosion resistant AISI 316 (A4). Features and Benefits • • • • High Performance Grade 5.8 Carbon Steel • Zinc Plated for indoor or dry climates Hot dip galvanised to AS1650 and AS1214 • Hot dip galvanised to 42 micron for exterior applications High Performance AISI316 Stainless Steel for Coastal Applications • Pre-cut to standard chemical anchoring lengths Supplied with nuts and washers • Depth set mark to ensure correct embedment • Reliable external hex drive for installing capsules ChemSet™ Anchor Studs Description ChemSet™ Anchor Stud M8 x 110 Zinc ChemSet™ Anchor Stud M8 x 110 Galvanised ChemSet™ Anchor Stud M8 x 110 Stainless ChemSet™ Anchor Stud M10 x 130 Zinc ChemSet™ Anchor Stud M10 x 130 Galvanised ChemSet™ Anchor Stud M10 x 130 Stainless ChemSet™ Anchor Stud M12 x 160 Zinc ChemSet™ Anchor Stud M12 x 160 Galvanised ChemSet™ Anchor Stud M12 x 160 Stainless ChemSet™ Anchor Stud M12 x 180 Zinc Part No Box Quantity CS08110 10 CS08110GH 10 CS08110SS 10 CS10130 10 CS10130GH 10 CS10130SS 10 CS12160 10 CS12160GH 10 CS12160SS 10 CS12180 10 Description ChemSet™ Anchor Stud M16 x 190 Zinc ChemSet™ Anchor Stud M16 x 190 Galvanised ChemSet™ Anchor Stud M16 x 190 Stainless ChemSet™ Anchor Stud M20 x 260 Zinc ChemSet™ Anchor Stud M20 x 260 Galvanised ChemSet™ Anchor Stud M20 x 260 Stainless ChemSet™ Anchor Stud M24 x 300 Zinc ChemSet™ Anchor Stud M24 x 300 Galvanised ChemSet™ Anchor Stud M24 x 300 Stainless Part No Box Quantity CS12190 10 CS12190GH 10 CS12190SS 10 CS20260 6 CS20260GH 6 CS20260SS 6 CS24300 6 CS24300GH 6 CS24300SS 6 146 www.synergysystems.com.au
