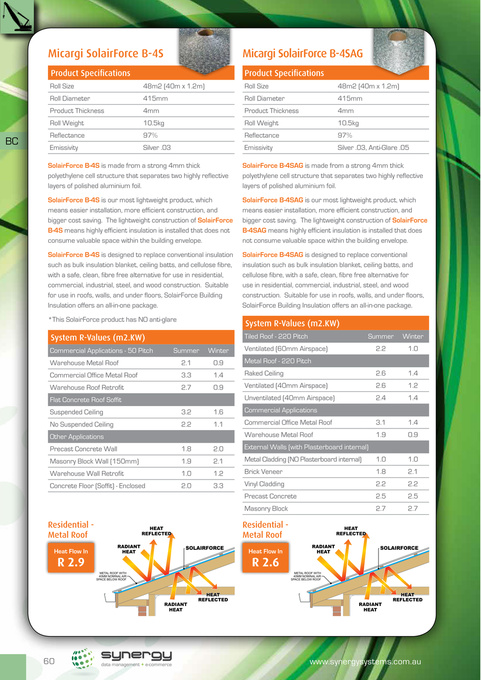

Micargi SolairForce B-4S Product Specifications Roll Size Roll Diameter Product Thickness Roll Weight Reflectance Emissivity 48m2 (40m x 1.2m) 415mm 4mm 10.5kg 97% Silver .03 Micargi SolairForce B-4SAG Product Specifications Roll Size Roll Diameter Product Thickness Roll Weight Reflectance Emissivity 48m2 (40m x 1.2m) 415mm 4mm 10.5kg 97% Silver .03, Anti-Glare .05 BC SolairForce B-4S is made from a strong 4mm thick polyethylene cell structure that separates two highly reflective layers of polished aluminium foil. SolairForce B-4S is our most lightweight product, which means easier installation, more efficient construction, and bigger cost saving. The lightweight construction of SolairForce B-4S means highly efficient insulation is installed that does not consume valuable space within the building envelope. SolairForce B-4S is designed to replace conventional insulation such as bulk insulation blanket, ceiling batts, and cellulose fibre, with a safe, clean, fibre free alternative for use in residential, commercial, industrial, steel, and wood construction. Suitable for use in roofs, walls, and under floors, SolairForce Building Insulation offers an all-in-one package. *This SolairForce product has NO anti-glare SolairForce B-4SAG is made from a strong 4mm thick polyethylene cell structure that separates two highly reflective layers of polished aluminium foil. SolairForce B-4SAG is our most lightweight product, which means easier installation, more efficient construction, and bigger cost saving. The lightweight construction of SolairForce B-4SAG means highly efficient insulation is installed that does not consume valuable space within the building envelope. SolairForce B-4SAG is designed to replace conventional insulation such as bulk insulation blanket, ceiling batts, and cellulose fibre, with a safe, clean, fibre free alternative for use in residential, commercial, industrial, steel, and wood construction. Suitable for use in roofs, walls, and under floors, SolairForce Building Insulation offers an all-in-one package. System R-Values (m2.KW) Tiled Roof - 220 Pitch Summer 2.2 2.6 2.6 2.4 3.1 1.9 1.0 1.8 2.2 2.5 2.7 Winter 1.0 1.4 1.2 1.4 1.4 0.9 1.0 2.1 2.2 2.5 2.7 Winter 0.9 1.4 0.9 1.6 1.1 2.0 2.1 1.2 3.3 Ventilated (60mm Airspace) Metal Roof - 220 Pitch Raked Ceiling Ventilated (40mm Airspace) Unventilated (40mm Airspace) 3.2 2.2 1.8 1.9 1.0 2.0 Commercial Applications Commercial Office Metal Roof Warehouse Metal Roof External Walls (with Plasterboard internal) Metal Cladding (NO Plasterboard internal) Brick Veneer Vinyl Cladding Precast Concrete Masonry Block System R-Values (m2.KW) Commercial Applications - 50 Pitch Warehouse Metal Roof Commercial Office Metal Roof Warehouse Roof Retrofit Flat Concrete Roof Soffit Suspended Ceiling No Suspended Ceiling Other Applications Precast Concrete Wall Masonry Block Wall (150mm) Warehouse Wall Retrofit Concrete Floor (Soffit) - Enclosed Summer 2.1 3.3 2.7 Residential Metal Roof Heat Flow In SOLAIRFORCE Residential Metal Roof Heat Flow In SOLAIRFORCE R 2.9 R 2.6 60 www.synergysystems.com.au
