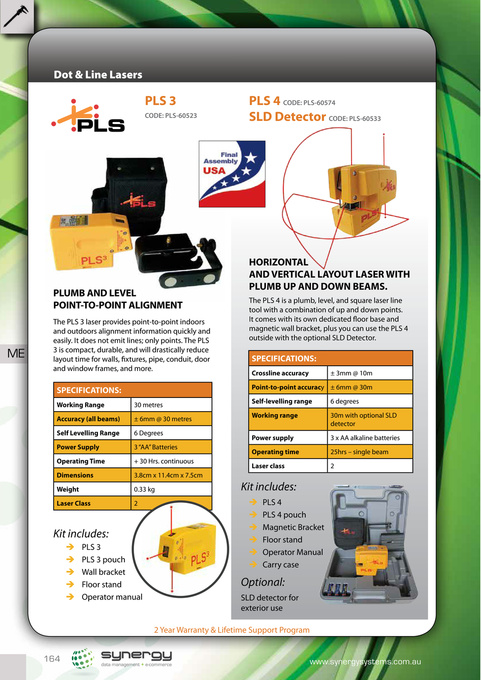

Dot & Line Lasers
PLS 3
CODE: PLS-60523
PLS 4 CODE: PLS-60574 SLD Detector CODE: PLS-60533
PLUMB AND LEVEL POINT-TO-POINT ALIGNMENT
The PLS 3 laser provides point-to-point indoors and outdoors alignment information quickly and easily. It does not emit lines; only points. The PLS 3 is compact, durable, and will drastically reduce layout time for walls, fixtures, pipe, conduit, door and window frames, and more.
HORIZONTAL AND VERTICAL LAYOUT LASER WITH PLUMB UP AND DOWN BEAMS.
The PLS 4 is a plumb, level, and square laser line tool with a combination of up and down points. It comes with its own dedicated floor base and magnetic wall bracket, plus you can use the PLS 4 outside with the optional SLD Detector.
ME
SPECIFICATIONS:
Crossline accuracy ± 3mm @ 10m Point-to-point accuracy ± 6mm @ 30m
SPECIFICATIONS:
Working Range Accuracy (all beams) Self Levelling Range Power Supply Operating Time Dimensions Weight Laser Class 30 metres ± 6mm @ 30 metres 6 Degrees 3 “AA” Batteries + 30 Hrs. continuous 3.8cm x 11.4cm x 7.5cm 0.33 kg 2
Self-levelling range Working range Power supply Operating time Laser class
6 degrees 30m with optional SLD detector 3 x AA alkaline batteries 25hrs – single beam 2
Kit includes:
PLS 4 PLS 4 pouch Magnetic Bracket Floor stand Operator Manual Carry case
Kit includes:
PLS 3 PLS 3 pouch Wall bracket Floor stand Operator manual
Optional:
SLD detector for exterior use 2 Year Warranty & Lifetime Support Program
164
www.synergysystems.com.au
