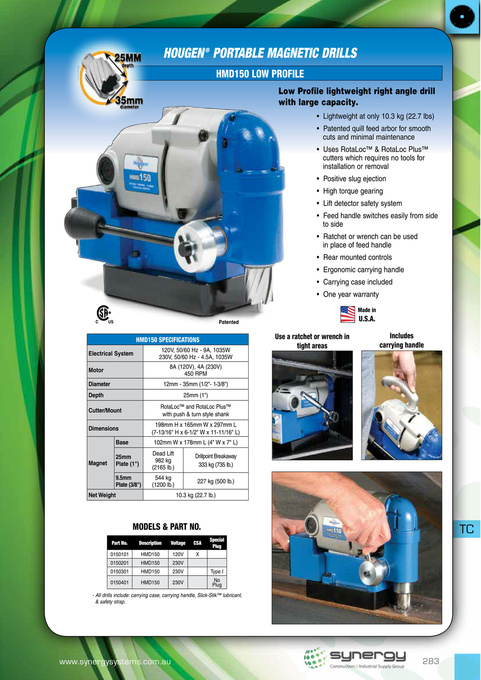

Hougen ® portable magnetic drills
HMD150 lOw PrOfile
Low Profile lightweight right angle drill with large capacity.
• Lightweight at only 10.3 kg (22.7 lbs) • Patented quill feed arbor for smooth cuts and minimal maintenance • Uses RotaLoc™ & RotaLoc Plus™ cutters which requires no tools for installation or removal • Positive slug ejection • High torque gearing • Lift detector safety system • Feed handle switches easily from side to side • Ratchet or wrench can be used in place of feed handle • Rear mounted controls • Ergonomic carrying handle • Carrying case included • One year warranty
Made in
Patented
U.S.a. Use a ratchet or wrench in tight areas Includes carrying handle
HMD150 SPecificatiOnS
Electrical System Motor Diameter Depth Cutter/Mount Dimensions Base Magnet 25mm Plate (1") 9.5mm Plate (3/8") Net Weight 120V, 50/60 Hz - 9A, 1035W 230V, 50/60 Hz - 4.5A, 1035W 8A (120V), 4A (230V) 450 RPM 12mm - 35mm (1/2"- 1-3/8") 25mm (1") RotaLoc™ and RotaLoc Plus™ with push & turn style shank 198mm H x 165mm W x 297mm L (7-13/16" H x 6-1/2" W x 11-11/16" L) 102mm W x 178mm L (4" W x 7" L) Dead Lift 982 kg (2165 lb.) 544 kg (1200 lb.) Drillpoint Breakaway 333 kg (735 lb.) 227 kg (500 lb.) 10.3 kg (22.7 lb.)
MODelS & Part nO.
Part No. 0150101 0150201 0150301 0150401 Description HMD150 HMD150 HMD150 HMD150 Voltage 120V 230V 230V 230V Type I No Plug CSA X Special Plug
TC
- All drills include: carrying case, carrying handle, Slick-Stik™ lubricant, & safety strap.
