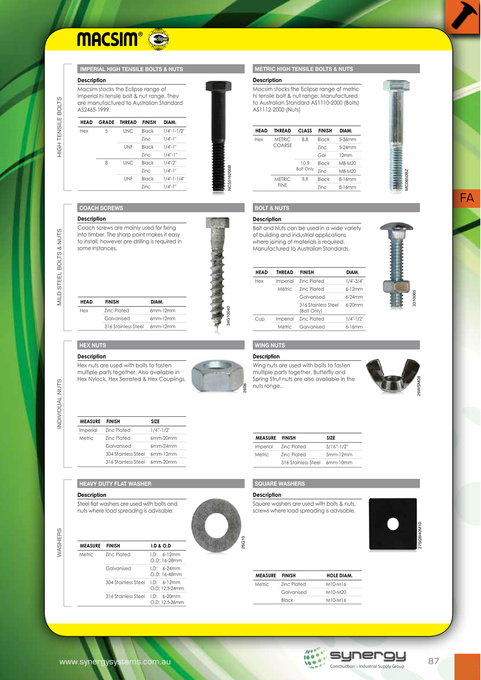

IMPERIAL HIGH TENSILE BOLTS & NUTS Description HIGH TENSILE BOLTS METRIC HIGH TENSILE BOLTS & NUTS Description Macsim stocks the Eclipse range of Imperial hi tensile bolt & nut range. They are manufactured to Australian Standard AS2465-1999. HEAD Hex GRADE 5 THREAD UNC UNF 8 UNC UNF FINISH Black Zinc Black Zinc Black Zinc Black Zinc DIAM. 1/4"-1-1/2" 1/4"-1" 1/4"-1" 1/4”-1” NC5516200B Macsim stocks the Eclipse range of metric hi tensile bolt & nut range. Manufactured to Australian Standard AS1110-2000 (Bolts) AS1112-2000 (Nuts) HEAD Hex THREAD METRIC COARSE CLASS 8.8 FINISH Black Zinc Gal Bolt Only DIAM. 5-36mm 5-24mm 12mm M8-M20 8-16mm 8-16mm MC0850BZ 1/4"-2" 1/4"-1" 1/4"-1-1/4" 1/4"-1" 10.9 8.8 Black Zinc Black Zinc M8-M20 METRIC FINE COACH SCREWS Description MILD STEEL BOLTS & NUTS BOLT & NUTS Description FA Coach screws are mainly used for fixing into timber. The sharp point makes it easy to install, however pre-drilling is required in some instances. Bolt and Nuts can be used in a wide variety of building and industrial applications where joining of materials is required. Manufactured to Australian Standards. HEAD Hex THREAD Imperial Metric FINISH Zinc Plated Zinc Plated Galvanised 316 Stainless Steel (Bolt Only) DIAM. 1/4"-3/4" 6-24mm 6-20mm 1/4"-1/2" 6-16mm 3310065 27SQB40M10 26WSM08 6-12mm HEAD Hex FINISH Zinc Plated Galvanised 316 Stainless Steel DIAM. 6mm-12mm 6mm-12mm 6mm-12mm 34G10040 Cup Imperial Metric Zinc Plated Galvanised HEX NUTS Description Hex nuts are used with bolts to fasten multiple parts together. Also available in Hex Nylock, Hex Serrated & Hex Couplings. 2608 WING NUTS Description Wing nuts are used with bolts to fasten multiple parts together. Butterfly and Spring Strut nuts are also available in the nuts range.. INDIVIDUAL NUTS MEASURE Imperial Metric FINISH Zinc Plated Zinc Plated Galvanised 304 Stainless Steel 316 Stainless Steel SIZE 1/4”-1/2" 6mm-20mm 6mm-24mm 6mm-12mm 6mm-20mm MEASURE Imperial Metric FINISH Zinc Plated Zinc Plated 316 Stainless Steel SIZE 3/16”-1/2" 5mm-12mm 6mm-10mm HEAVY DUTY FLAT WASHER Description SQUARE WASHERS Description Steel flat washers are used with bolts and nuts where load spreading is advisable. WASHERS Square washers are used with bolts & nuts, screws where load spreading is advisable. MEASURE Metric FINISH Zinc Plated Galvanised 304 Stainless Steel 316 Stainless Steel I.D & O.D I.D: 6-12mm O.D: 16-28mm I.D: 6-24mm O.D: 16-48mm I.D: 6-12mm O.D: 12.5-24mm I.D: 6-20mm O.D: 12.5-36mm 26G10 MEASURE Metric FINISH Zinc Plated Galvanised Black HOLE DIAM. M10-M16 M10-M20 M10-M16 www.synergysystems.com.au 87
