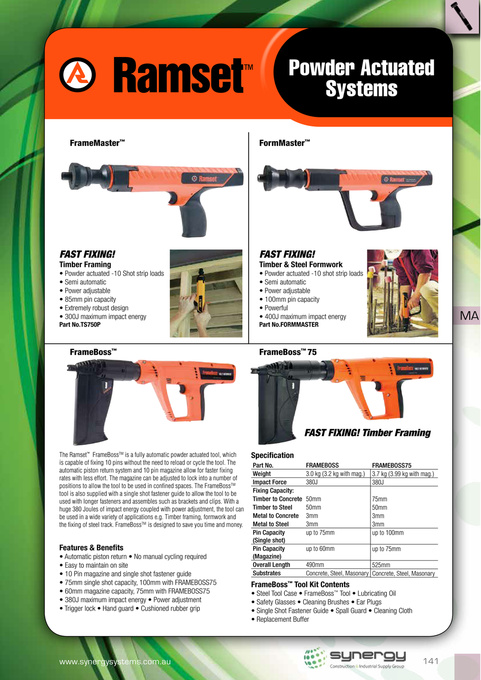

Powder Actuated Systems FrameMaster™ FormMaster™ FAST FIXING! Timber Framing • Powder actuated -10 Shot strip loads • Semi automatic • Power adjustable • 85mm pin capacity • Extremely robust design • 300J maximum impact energy Part No.TS750P FAST FIXING! Timber & Steel Formwork • Powder actuated -10 shot strip loads • Semi automatic • Power adjustable • 100mm pin capacity • Powerful • 400J maximum impact energy Part No.FORMMASTER MA FrameBoss™ FrameBoss™ 75 FAST FIXING! Timber Framing The Ramset™ FrameBossTM is a fully automatic powder actuated tool, which is capable of fixing 10 pins without the need to reload or cycle the tool. The automatic piston return system and 10 pin magazine allow for faster fixing rates with less effort. The magazine can be adjusted to lock into a number of positions to allow the tool to be used in confined spaces. The FrameBossTM tool is also supplied with a single shot fastener guide to allow the tool to be used with longer fasteners and assembles such as brackets and clips. With a huge 380 Joules of impact energy coupled with power adjustment, the tool can be used in a wide variety of applications e.g. Timber framing, formwork and the fixing of steel track. FrameBossTM is designed to save you time and money. Specification Part No. Weight Impact Force Fixing Capacity: Timber to Concrete Timber to Steel metal to Concrete metal to Steel Pin Capacity (Single shot) Pin Capacity (magazine) Overall Length Substrates FrameBOSS 3.0 kg (3.2 kg with mag.) 380J 50mm 50mm 3mm 3mm up to 75mm up to 60mm FrameBOSS75 3.7 kg (3.99 kg with mag.) 380J 75mm 50mm 3mm 3mm up to 100mm up to 75mm Features & Benefits • Automatic piston return • No manual cycling required • Easy to maintain on site • 10 Pin magazine and single shot fastener guide • 75mm single shot capacity, 100mm with FRAMEBOSS75 • 60mm magazine capacity, 75mm with FRAMEBOSS75 • 380J maximum impact energy • Power adjustment • Trigger lock • Hand guard • Cushioned rubber grip 490mm 525mm Concrete, Steel, Masonary Concrete, Steel, Masonary FrameBoss™ Tool Kit Contents • Steel Tool Case • FrameBoss™ Tool • Lubricating Oil • Safety Glasses • Cleaning Brushes • Ear Plugs • Single Shot Fastener Guide • Spall Guard • Cleaning Cloth • Replacement Buffer www.synergysystems.com.au 141
