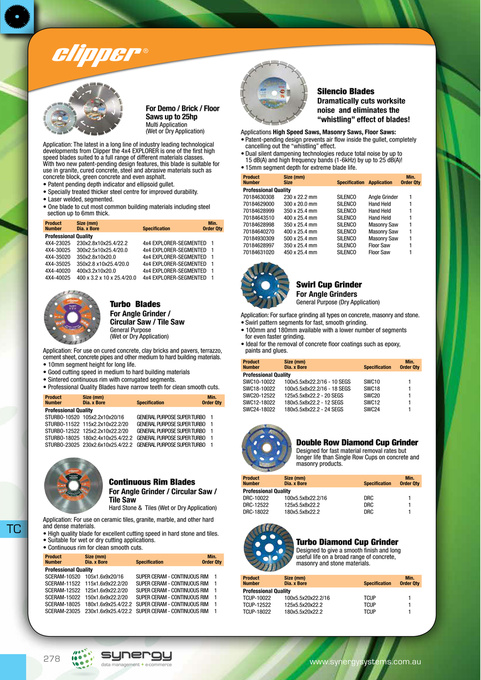

Silencio Blades For Demo / Brick / Floor Saws up to 25hp Multi Application (Wet or Dry Application) Application: The latest in a long line of industry leading technological developments from Clipper the 4x4 EXPLORER is one of the first high speed blades suited to a full range of different materials classes. With two new patent-pending design features, this blade is suitable for use in granite, cured concrete, steel and abrasive materials such as concrete block, green concrete and even asphalt. • Patent pending depth indicator and ellipsoid gullet. • Specially treated thicker steel centre for improved durability. • Laser welded, segmented. • One blade to cut most common building materials including steel section up to 6mm thick. Product Number Size (mm) Dia. x Bore Specification Min. Order Qty Dramatically cuts worksite noise and eliminates the “whistling” effect of blades! Applications High Speed Saws, Masonry Saws, Floor Saws: • Patent-pending design prevents air flow inside the gullet, completely cancelling out the “whistling” effect. • Dual silent dampening technologies reduce total noise by up to 15 dB(A) and high frequency bands (1-6kHz) by up to 25 dB(A)! • 15mm segment depth for extreme blade life. Product Number Size (mm) Size Specification Application Min. Order Qty Professional Quality 4X4-23025 230x2.8x10x25.4/22.2 4X4-30025 300x2.5x10x25.4/20.0 4X4-35020 350x2.8x10x20.0 4X4-35025 350x2.8 x10x25.4/20.0 4X4-40020 400x3.2x10x20.0 4X4-40025 400 x 3.2 x 10 x 25.4/20.0 4x4 EXPLORER-SEGMENTED 4x4 EXPLORER-SEGMENTED 4x4 EXPLORER-SEGMENTED 4x4 EXPLORER-SEGMENTED 4x4 EXPLORER-SEGMENTED 4x4 EXPLORER-SEGMENTED 1 1 1 1 1 1 Professional Quality 70184630308 230 x 22.2 mm 70184629000 300 x 20.0 mm 70184628999 350 x 25.4 mm 70184643510 400 x 25.4 mm 70184628998 350 x 25.4 mm 70184640270 400 x 25.4 mm 70184930309 500 x 25.4 mm 70184628997 350 x 25.4 mm 70184631020 450 x 25.4 mm SILENCO SILENCO SILENCO SILENCO SILENCO SILENCO SILENCO SILENCO SILENCO Angle Grinder Hand Held Hand Held Hand Held Masonry Saw Masonry Saw Masonry Saw Floor Saw Floor Saw 1 1 1 1 1 1 1 1 1 Swirl Cup Grinder For Angle Grinders General Purpose (Dry Application) Application: For surface grinding all types on concrete, masonry and stone. • Swirl pattern segments for fast, smooth grinding. • 100mm and 180mm available with a lower number of segments for even faster grinding. • Ideal for the removal of concrete floor coatings such as epoxy, paints and glues. Product Number Size (mm) Dia. x Bore Specification Min. Order Qty Turbo Blades For Angle Grinder / Circular Saw / Tile Saw General Purpose (Wet or Dry Application) Application: For use on cured concrete, clay bricks and pavers, terrazzo, cement sheet, concrete pipes and other medium to hard building materials. • 10mm segment height for long life. • Good cutting speed in medium to hard building materials • Sintered continuous rim with corrugated segments. • Professional Quality Blades have narrow teeth for clean smooth cuts. Product Number Size (mm) Dia. x Bore Specification Min. Order Qty Professional Quality STURBO-10520 105x2.2x10x20/16 STURBO-11522 115x2.2x10x22.2/20 STURBO-12522 125x2.2x10x22.2/20 STURBO-18025 180x2.4x10x25.4/22.2 STURBO-23025 230x2.6x10x25.4/22.2 Professional Quality SWC10-10022 100x5.5x8x22.2/16 - 10 SEGS SWC18-10022 100x5.5x8x22.2/16 - 18 SEGS SWC20-12522 125x5.5x8x22.2 - 20 SEGS SWC12-18022 180x5.5x8x22.2 - 12 SEGS SWC24-18022 180x5.5x8x22.2 - 24 SEGS SWC10 SWC18 SWC20 SWC12 SWC24 1 1 1 1 1 GENERAL PURPOSE SUPER TURBO GENERAL PURPOSE SUPER TURBO GENERAL PURPOSE SUPER TURBO GENERAL PURPOSE SUPER TURBO GENERAL PURPOSE SUPER TURBO 1 1 1 1 1 Double Row Diamond Cup Grinder Designed for fast material removal rates but longer life than Single Row Cups on concrete and masonry products. Product Number Size (mm) Dia. x Bore Specification Min. Order Qty Continuous Rim Blades For Angle Grinder / Circular Saw / Tile Saw Hard Stone & Tiles (Wet or Dry Application) Professional Quality DRC-10022 100x5.5x8x22.2/16 DRC-12522 125x5.5x8x22.2 DRC-18022 180x5.5x8x22.2 DRC DRC DRC 1 1 1 TC Application: For use on ceramic tiles, granite, marble, and other hard and dense materials. • High quality blade for excellent cutting speed in hard stone and tiles. • Suitable for wet or dry cutting applications. • Continuous rim for clean smooth cuts. Product Number Size (mm) Dia. x Bore Specification Min. Order Qty Turbo Diamond Cup Grinder Professional Quality SCERAM-10520 105x1.6x9x20/16 SCERAM-11522 115x1.6x9x22.2/20 SCERAM-12522 125x1.6x9x22.2/20 SCERAM-15022 150x1.6x9x22.2/20 SCERAM-18025 180x1.6x9x25.4/22.2 SCERAM-23025 230x1.6x9x25.4/22.2 Designed to give a smooth finish and long useful life on a broad range of concrete, masonry and stone materials. Product Number Size (mm) Dia. x Bore Specification Min. Order Qty SUPER CERAM - CONTINUOUS RIM SUPER CERAM - CONTINUOUS RIM SUPER CERAM - CONTINUOUS RIM SUPER CERAM - CONTINUOUS RIM SUPER CERAM - CONTINUOUS RIM SUPER CERAM - CONTINUOUS RIM 1 1 1 1 1 1 Professional Quality TCUP-10022 100x5.5x20x22.2/16 TCUP-12522 125x5.5x20x22.2 TCUP-18022 180x5.5x20x22.2 TCUP TCUP TCUP 1 1 1 5 310-0812 Synergy Group Catalogue 2013 v05.indd 5 31/08/12 4:45 PM 278 www.synergysystems.com.au
