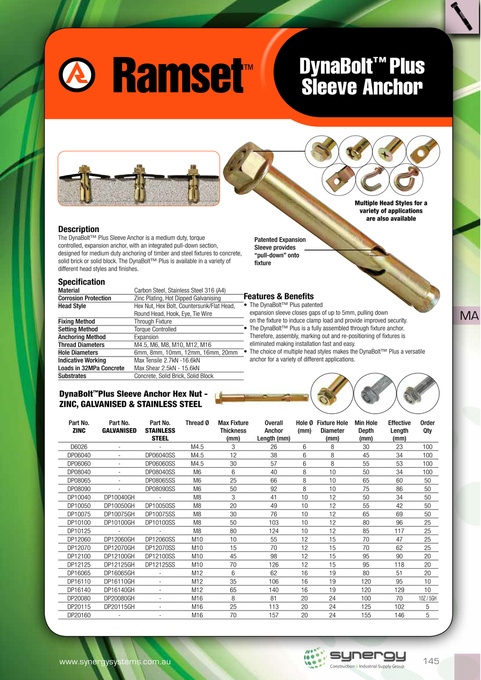

DynaBolt™ Plus Sleeve Anchor Multiple Head Styles for a variety of applications are also available Description The DynaBolt™ Plus Sleeve Anchor is a medium duty, torque controlled, expansion anchor, with an integrated pull-down section, designed for medium duty anchoring of timber and steel fixtures to concrete, solid brick or solid block. The DynaBolt™ Plus is available in a variety of different head styles and finishes. Patented expansion Sleeve provides “pull-down” onto fixture Specification material Corrosion Protection Head Style Fixing method Setting method anchoring method Thread Diameters Hole Diameters Indicative Working Loads in 32mPa Concrete Substrates Carbon Steel, Stainless Steel 316 (A4) Features & Benefits Zinc Plating, Hot Dipped Galvanising Hex Nut, Hex Bolt, Countersunk/Flat Head, • The DynaBolt™ Plus patented expansion sleeve closes gaps of up to 5mm, pulling down Round Head, Hook, Eye, Tie Wire on the fixture to induce clamp load and provide improved security. Through Fixture • The DynaBolt™ Plus is a fully assembled through fixture anchor. Torque Controlled Therefore, assembly, marking out and re-positioning of fixtures is Expansion eliminated making installation fast and easy. M4.5, M6, M8, M10, M12, M16 6mm, 8mm, 10mm, 12mm, 16mm, 20mm • The choice of multiple head styles makes the DynaBolt™ Plus a versatile anchor for a variety of different applications. Max Tensile 2.7kN -16.6kN Max Shear 2.5kN - 15.6kN Concrete, Solid Brick, Solid Block MA DynaBolt™Plus Sleeve Anchor Hex Nut ZINC, GALVANISED & STAINLESS STEEL Part No. ZINC D6026 DP06040 DP06060 DP08040 DP08065 DP08090 DP10040 DP10050 DP10075 DP10100 DP10125 DP12060 DP12070 DP12100 DP12125 DP16065 DP16110 DP16140 DP20080 DP20115 DP20160 Part No. GALVANISED DP10040GH DP10050GH DP10075GH DP10100GH DP12060GH DP12070GH DP12100GH DP12125GH DP16065GH DP16110GH DP16140GH DP20080GH DP20115GH Part No. STAINLESS STEEL DP06040SS DP06060SS DP08040SS DP08065SS DP08090SS DP10050SS DP10075SS DP10100SS DP12060SS DP12070SS DP12100SS DP12125SS Thread Ø max Fixture Thickness (mm) 3 12 30 6 25 50 3 20 30 50 80 10 15 45 70 6 35 65 8 25 70 Overall Hole Ø Fixture Hole anchor (mm) Diameter Length (mm) (mm) 26 6 8 38 6 8 57 6 8 40 8 10 66 8 10 92 8 10 41 10 12 49 10 12 76 10 12 103 10 12 124 10 12 55 12 15 70 12 15 98 12 15 126 12 15 62 16 19 106 16 19 140 16 19 81 20 24 113 20 24 157 20 24 min Hole Depth (mm) 30 45 55 50 65 75 50 55 65 80 85 70 70 95 95 80 120 120 100 125 155 effective Length (mm) 23 34 53 34 60 86 34 42 69 96 117 47 62 90 118 51 95 129 70 102 146 Order Qty 100 100 100 100 50 50 50 50 50 25 25 25 25 20 20 20 10 10 10Z / 5GH 5 5 M4.5 M4.5 M4.5 M6 M6 M6 M8 M8 M8 M8 M8 M10 M10 M10 M10 M12 M12 M12 M16 M16 M16 www.synergysystems.com.au 145
