6
PRODUCT
PBL42, PBL60, PBL86 motor and controller packages
DIRECTIVE
2004/108/EC
STANDARDS
EN61000-6-1 Class B Immunity
EN61000-6-2 Class A Immunity
EN61000-6-3 Class B Emissions
EN61000-6-4 Class A Emissions
In order to meet the above EMC standards, an EMC fi lter is required in the power supply line to the motor
controller. PBL42 and PBL60 motors require a 10A fi lter; PBL86 motors require a 2A fi lter. The PBL86
additionally requires a ferrite sleeve fi tted over the Hall sensor leads close to the controller, only if meeting
EN61000-6-2 is a requirement.

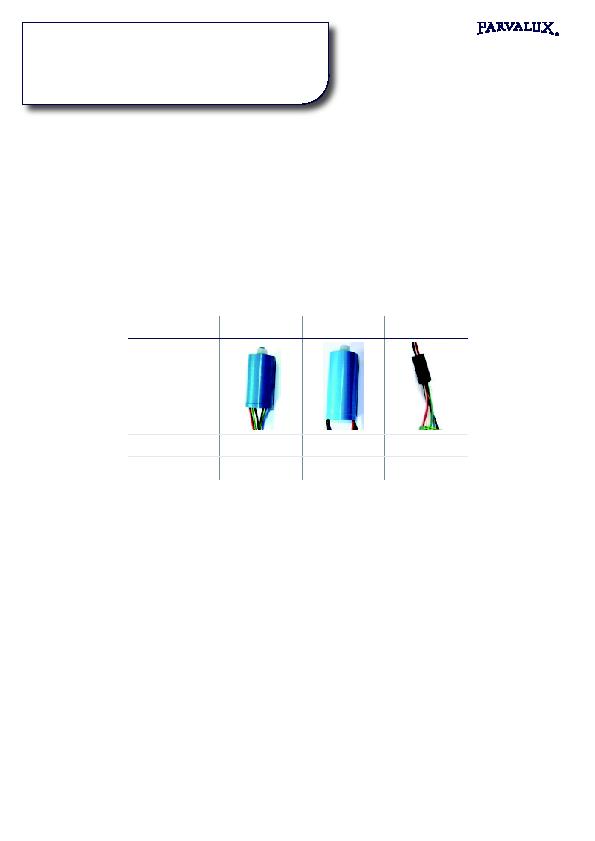

ACCESSORY
10A FILTER
25A FILTER
FERRITE SLEEVE
Parvalux part no.
026
027
028
Dimensions (mm)
40 dia x 7 long
46 dia x 8 long
11. dia x 2 long
The motor and controller cases should be earthed.
The connection between power supply and controller must be less than 3m in length.
The motor should be connected to the controller using the leads supplied.
If the motor leads need to be modifi ed, the replacement cable must meet these conditions: -
Screened cable should be used over the whole length from controller to motor.
The 3 motor phase leads and Hall sensor leads must be 2 separate screened cables.
The cable screens must be connected to earth at both ends.
The cables should be less than 3m in length.
The equipment is installed such that during operation, there is no risk of electrostatic discharge
reaching the exposed screw heads on the connectors to the controller.
1.
2.
3.
4.
a.
b.
c.
d.
.
EMC INSTALLATION REQUIREMENTS
EMC directive
compliance
