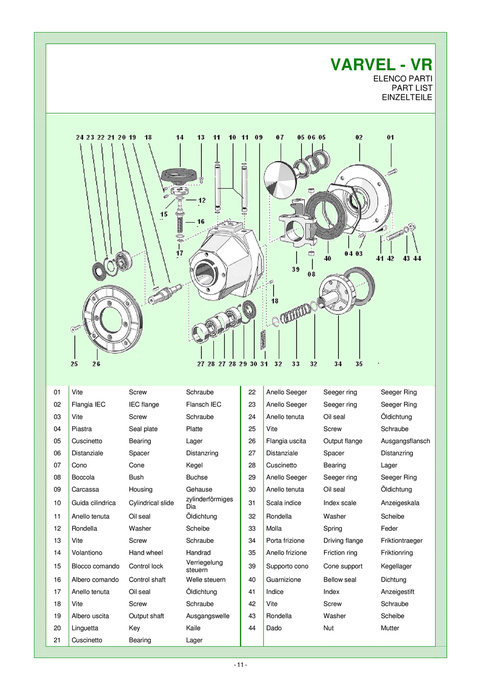

VARVEL - VR
ELENCO PARTI PART LIST EINZELTEILE
01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21
Vite Flangia IEC Vite Piastra Cuscinetto Distanziale Cono Boccola Carcassa Guida cilindrica Anello tenuta Rondella Vite Volantiono Blocco comando Albero comando Anello tenuta Vite Albero uscita Linguetta Cuscinetto
Screw IEC flange Screw Seal plate Bearing Spacer Cone Bush Housing Cylindrical slide Oil seal Washer Screw Hand wheel Control lock Control shaft Oil seal Screw Output shaft Key Bearing
Schraube Flansch IEC Schraube Platte Lager Distanzring Kegel Buchse Gehause zylinderförmiges Dia Öldichtung Scheibe Schraube Handrad Verriegelung steuern Welle steuern Öldichtung Schraube Ausgangswelle Kaile Lager
22 23 24 25 26 27 28 29 30 31 32 33 34 35 39 40 41 42 43 44
Anello Seeger Anello Seeger Anello tenuta Vite Flangia uscita Distanziale Cuscinetto Anello Seeger Anello tenuta Scala indice Rondella Molla Porta frizione Anello frizione Supporto cono Guarnizione Indice Vite Rondella Dado
Seeger ring Seeger ring Oil seal Screw Output flange Spacer Bearing Seeger ring Oil seal Index scale Washer Spring Driving flange Friction ring Cone support Bellow seal Index Screw Washer Nut
Seeger Ring Seeger Ring Öldichtung Schraube Ausgangsflansch Distanzring Lager Seeger Ring Öldichtung Anzeigeskala Scheibe Feder Friktiontraeger Friktionring Kegellager Dichtung Anzeigestift Schraube Scheibe Mutter
