5/16" EMBU
Ceramic Chip
1/4"
Ceramic Tile
1/4"
UHMW
1/2"
Black Rubber
1/4"
EMBU Blue
5/16"
EMBU Orange
1/4" AR
Steel
5/16"
EMBU Blue
WHEN ORDERING, CHOOSE YOUR IMPACT PLATE
PATENTED PIPE SIZE ADJUSTABLE Z DEAD STOP
patent #8,863,932. This Pipe Size Adjustable Z Dead Stop
has no internal baffle. You select the type of replaceable impact plate for your application. Unit comes with access
panel for inspection of wear and for replacement of impact plate. Unit will adjust from 35° to 60°. Replaceable impact
plate is at a 35° angle allowing for a moving pile to form when material flow is sufficient. Unit is designed for
free-flowing dry bulk material.
Choose your impact plate for your application. Unit is 7 gauge construction and comes with 7 gauge square to round
on discharge. Your choice of impact plate is included in price. Replacement impact plates available. Primed gray.
Easy to Install
1. Slip angle ring over incoming spout.
2. Insert incoming spout approximately
to the pivot point.
3. Weld angle ring on incoming spout.
4. Bolt or clamp incoming spout angle ring
to inlet angle ring.
5. Tighten hood bolts. Caulk hood.
6. An A-frame may be needed. Incoming
spout may need to be supported.

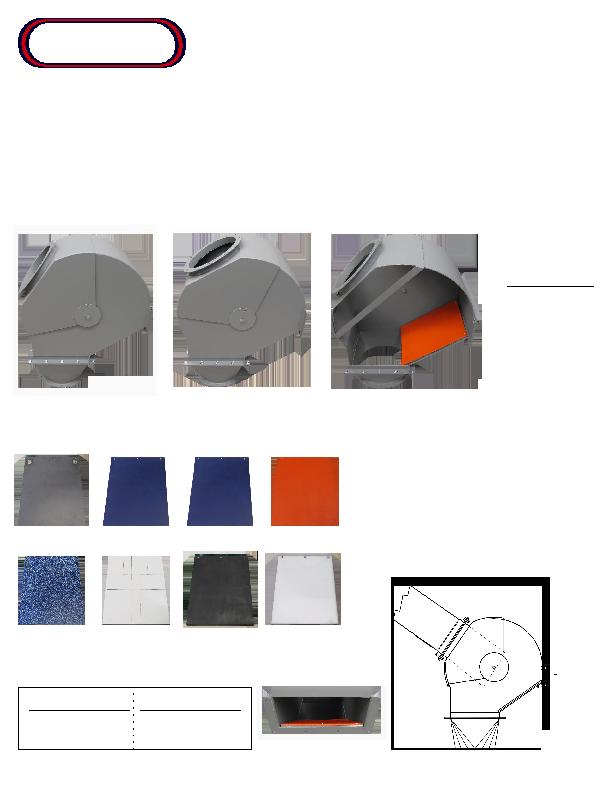

View of Access
Shown at
35°
Shown at
60°
Cutaway
View
PIPE SIZE ADJUSTABLE Z DEAD STOP
Patent #8,863,932
Size
Price
6
5/8
"
$569.00
8
5/8
"
619.00
10
3/4
"
879.00
12
3/4
"
999.00
REPLACEMENT IMPACT PLATES
Size
Price
6
5/8
"
$129.00
8
5/8
"
189.00
Size
Price
10
3/4
"
$189.00
12
3/4
"
249.00
P.O. Box 156 · 101 Pine St.
Dickens, IA 51333
NOLIN MILLING, INC.
©2018
ADJUSTS FROM
35° TO 60°
INCOMING SPOUT RUN
ACCESS
PANEL
REPLACEMENT
IMPACT PLATE
B8
