5/16" EMBU
Ceramic Chip
1/4"
Ceramic Tile
1/4"
UHMW
1/2"
Black Rubber
1/4"
EMBU Blue
5/16"
EMBU Orange
1/4" AR
Steel
5/16"
EMBU Blue
WHEN ORDERING, CHOOSE YOUR IMPACT PLATE
Nolin Milling is proud to introduce our
PATENTED STAINLESS STEEL ADJUSTABLE Z DEAD STOP
patent #8,863,932.
This Stainless Steel Adjustable Z Dead Stop has no internal baffle. You select the type of replaceable impact plate for
your application. Unit comes with access panel for inspection of wear and for replacement of impact plate. Unit will
adjust from 35° to 60°. Replaceable impact plate is at a 35° angle allowing for a moving pile to form when material flow
is sufficient. Unit is designed for free-flowing dry bulk material.
Choose your impact plate for your application. Unit is 7 gauge construction and comes with 7 gauge square to round on
discharge. Your choice of impact plate is included in price. Replacement impact plates available.
Easy to Install
1. Slip angle ring over incoming spout.
2. Insert incoming spout approximately
to the pivot point.
3. Weld angle ring on incoming spout.
4. Bolt or clamp incoming spout angle ring
to inlet angle ring.
5. Tighten hood bolts. Caulk hood.
6. An A-frame may be needed. Incoming
spout may need to be supported.

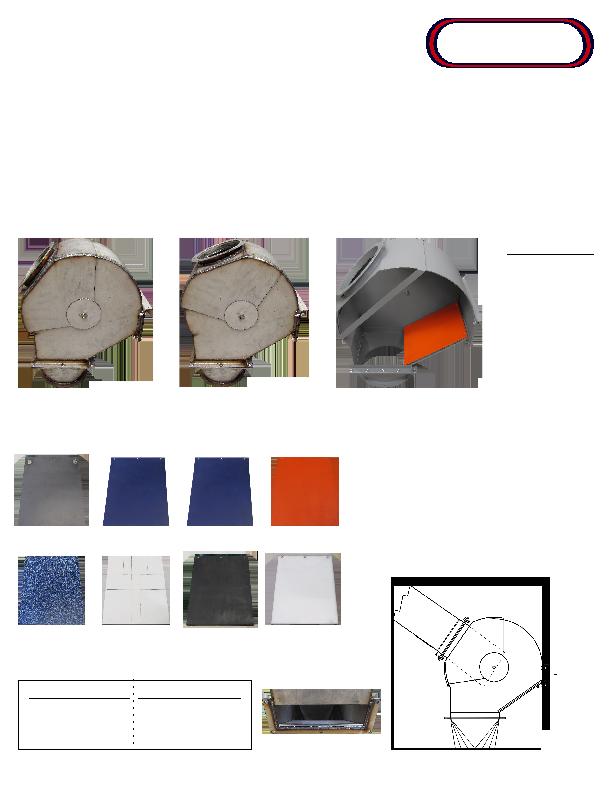

Stainless Steel
Cutaway View
Shown in
Primed Gray
Shown at
35°
Shown at
60°
View of Access
Size
Price
6"
$1,069.00
8"
1,089.00
10"
1,229.00
12"
1,749.00
14"
1,939.00
16"
2,489.00
18"
2,739.00
20"
2,989.00
24"
3,239.00
REPLACEMENT IMPACT PLATES
Size
Price
6", 8"
$129.00
10", 12"
189.00
14", 16"
249.00
Size
Price
18", 20"
$319.00
24"
439.00
P.O. Box 156 · 101 Pine St.
Dickens, IA 51333
NOLIN MILLING, INC.
ADJUSTS FROM
35° TO 60°
INCOMING SPOUT RUN
ACCESS
PANEL
REPLACEMENT
IMPACT PLATE
STAINLESS STEEL ADJUSTABLE Z DEAD STOP
Patent #8,863,932
©2018
