5/16" EMBU
Ceramic Chip
1/4"
Ceramic Tile
1/4"
UHMW
1/2"
Black Rubber
1/4"
EMBU Blue
5/16"
EMBU Orange
1/4" AR
Steel
5/16"
EMBU Blue
WHEN ORDERING, CHOOSE YOUR IMPACT PLATE
Easy to Install
1. Slip angle ring over incoming spout.
2. Insert incoming spout approximately
to the pivot point.
3. Weld angle ring on incoming spout.
4. Bolt or clamp incoming spout angle ring
to inlet angle ring.
5. Tighten hood bolts. Caulk hood.
6. An A-frame may be needed. Incoming
spout may need to be supported.
GALVANIZED ADJUSTABLE Z DEAD STOP
Patent #8,863,932
Shown at
60°
Shown at
35°
View of Access

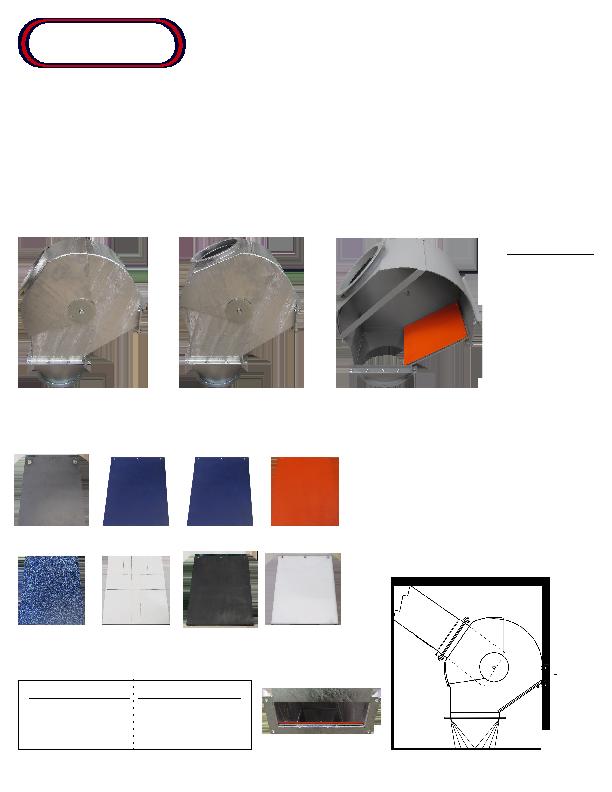

Nolin Milling is proud to introduce our
PATENTED GALVANIZED ADJUSTABLE Z DEAD STOP
patent #8,863,932.
This Galvanized Adjustable Z Dead Stop has no internal baffle. You select the type of replaceable impact plate for your
application. Unit comes with access panel for inspection of wear and for replacement of impact plate. Unit will adjust
from 35° to 60°. Replaceable impact plate is at a 35° angle allowing for a moving pile to form when material flow is
sufficient. Unit is designed for free-flowing dry bulk material.
Choose your impact plate for your application. Unit is 7 gauge construction and comes with 7 gauge square to round on
discharge. Your choice of impact plate is included in price. Replacement impact plates available.
Cutaway View
Shown in
Primed Gray
Galvanized
Size
Price
6"
$699.00
8"
749.00
10"
869.00
12"
1,189.00
14"
1,369.00
16"
1,749.00
18"
2,279.00
20"
2,569.00
24"
2,939.00
REPLACEMENT IMPACT PLATES
Size
Price
6", 8"
$129.00
10", 12"
189.00
14", 16"
249.00
Size
Price
18", 20"
$319.00
24"
439.00
P.O. Box 156 · 101 Pine St.
Dickens, IA 51333
NOLIN MILLING, INC.
©2018
ADJUSTS FROM
35° TO 60°
INCOMING SPOUT RUN
ACCESS
PANEL
REPLACEMENT
IMPACT PLATE
B2
