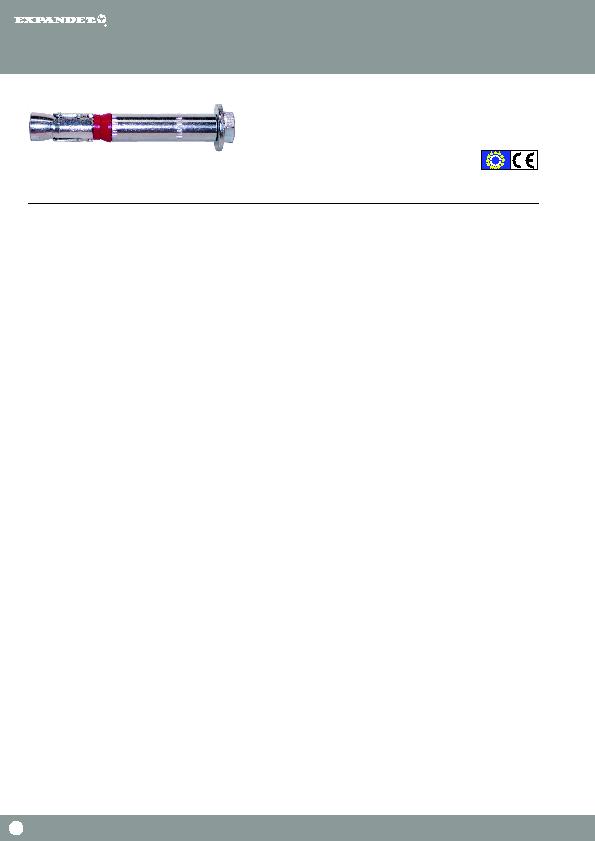

Expandet Heavy Duty Anchor SZ-S
For fixing of medium to heavy duty
applications where extra high degree of load
capacity is required in both cracked and
non-cracked concrete.
Through fixing.
EXPANDET HEAVY DUTY ANCHOR SZ-S, 8.8 steel, zinc plated (Technical Sheet No. 406)
TYPE
DIMENSION
MAX.
DRILL EXPANDET
PCS. PER
EAN 13
THICKNESS
OF FIXTURE DIA. ARTICLE NO.
BOX
PER BOX
SZ-S 10/10 6X 70 MM
10 MM
10 MM
SZS1010
50
5708620075013
SZ-S 10/30 6X 90 MM
30 MM
10 MM
SZS1030
50
5708620075020
SZ-S 10/50 6X110 MM
50 MM
10 MM
SZS1050
50
5708620075037
SZ-S 12/10 8X 80 MM
10 MM
12 MM
SZS1210
50
5708620075044
SZ-S 12/30 8X100 MM
30 MM
12 MM
SZS1230
50
5708620075051
SZ-S 12/50 8X120 MM
50 MM
12 MM
SZS1250
25
5708620075068
SZ-S 15/15 10X100 MM
15 MM
15 MM
SZS1515
25
5708620075075
SZ-S 15/25 10X110 MM
25 MM
15 MM
SZS1525
25
5708620075082
SZ-S 15/45 10X130 MM
45 MM
15 MM
SZS1545
25
5708620075099
SZ-S 18/10 12X110 MM
10 MM
18 MM
SZS1810
20
5708620075105
SZ-S 18/20 12X120 MM
20 MM
18 MM
SZS1820
20
5708620075112
SZ-S 18/40 12X140 MM
40 MM
18 MM
SZS1840
20
5708620075129
SZ-S 24/20 16X140 MM
20 MM
24 MM
SZS2420
10
5708620075136
SZ-S 24/50 16X170 MM
50 MM
24 MM
SZS2450
10
5708620075143
M20 (SZ-S 28), available on request.
European Technical approval: ETA -02/0030 (Option 1), CE-marked.
Fire Resistance Classification: F120.
VDS approval: M8-M20.
