EXPANDET THROUGHBOLT EXG II, zinc plated (Technical Sheet No. 402a.1)
TYPE DIMENSION
MAX
DRILL EXPANDET
PCS. PER
BOXES / PCS.
EAN 13
THICKNESS
OF FIXTURE DIA. ARTICLE NO.
BOX
PER CARTON
PER BOX
EXG II 6 X 40 MM * 5 MM 6 MM
0706040EG
100
18 / 1.800
5708620075211
EXG II 6 X 67 MM 10 MM 6 MM
0706067EG
100
9 / 900
5708620075228
EXG II 6 X 97 MM 40 MM 6 MM
0706097EG
100
6 / 600
5708620075235
EXG II 8 X 50 MM * 5 MM 8 MM
0708050EG
100
9 / 900
5708620075242
EXG II 8 X 60 MM
4 MM 8 MM
0708060EG
100
6 / 600
5708620075259
EXG II 8 X 75 MM 10 MM 8 MM
0708075EG
100
6 / 600
5708620075266
EXG II 8 X 95 MM 30 MM 8 MM
0708095EG
100
4 / 400
5708620075273
EXG II 8 X 110 MM 45 MM 8 MM
0708110EG
100
4 / 400
5708620075280
EXG II 8 X 165 MM 100 MM 8 MM
0708165EG
50
5708620076171
EXG II 10 X 60 MM * 10 MM 10 MM
0710060EG
50
9 / 450
5708620075310
EXG II 10 X 70 MM * 10 MM 10 MM
0710070EG
50
6 / 300
5708620076195
EXG II 10 X 90 MM 15 MM 10 MM
0710090EG
50
6 / 300
5708620075334
EXG II 10 X 105 MM 30 MM 10 MM
0710105EG
50
6 / 300
5708620075341
EXG II 10 X 120 MM 45 MM 10 MM
0710120EG
50
4 / 200
5708620075358
EXG II 10 X 145 MM 60 MM 10 MM
0710145EG
50
4 / 200
5708620075365
EXG II 10 X 175 MM 100 MM 10 MM
0710175EG
50
4 / 200
5708620075372
EXG II 10 X 215 MM 140 MM 10 MM
0710215EG
25
5708620075389
EXG II 12 X 75 MM * 5 MM 12 MM
0712075EG
25
9 / 225
5708620075396
EXG II 12 X 110 MM 15 MM 12 MM
0712110EG
25
6 / 150
5708620075402
EXG II 12 X 125 MM 30 MM 12 MM
0712125EG
25
4 / 100
5708620075419
EXG II 12 X 145 MM 50 MM 12 MM
0712145EG
25
4 / 100
5708620075426
EXG II 12 X 160 MM 65 MM 12 MM
0712160EG
25
4 / 100
5708620075433
EXG II 12 X 180 MM 85 MM 12 MM
0712180EG
25
4 / 100
5708620075440
EXG II 12 X 200 MM 105 MM 12 MM
0712200EG
25
4 / 100
5708620075457
EXG II 12 X 240 MM 145 MM 12 MM
0712240EG
20
5708620075464
EXG II 16 X 90 MM * 5 MM 16 MM
0716090EG
20
4 / 80
5708620075471
EXG II 16 X 115 MM 13 MM 16 MM
0716115EG
20
4 / 80
5708620075488
EXG II 16 X 130 MM 10 MM 16 MM
0716130EG
20
4 / 80
5708620075495
EXG II 16 X 150 MM 30 MM 16 MM
0716150EG
20
4 / 80
5708620075501
EXG II 16 X 180 MM 60 MM 16 MM
0716180EG
20
4 / 80
5708620075518
EXG II 16 X 220 MM 100 MM 16 MM
0716220EG
10
5708620075525
EXG II 16 X 250 MM 130 MM 16 MM
0716250EG
10
5708620075532
EXG II 16 X 285 MM 165 MM 16 MM
0716285EG
10
5708620075549
EXG II 16 X 320 MM 200 MM 16 MM
0716320EG
10
5708620075556
EXG II 20 X 120 MM 10 MM 20 MM
0720120EG
10
6 / 60
5708620075563
EXG II 20 X 180 MM 35 MM 20 MM
0720180EG
10
4 / 40
5708620075570
EXG II 20 X 205 MM 60 MM 20 MM
0720205EG
10
5708620075587
European Technical approval: ETA-10/0180 (Option 7), CE-marked
Fire Resistance Classification: F120 (120 minutes)
VDS approval: M8-M10
* Not included in ETA-approval
Concrete
26

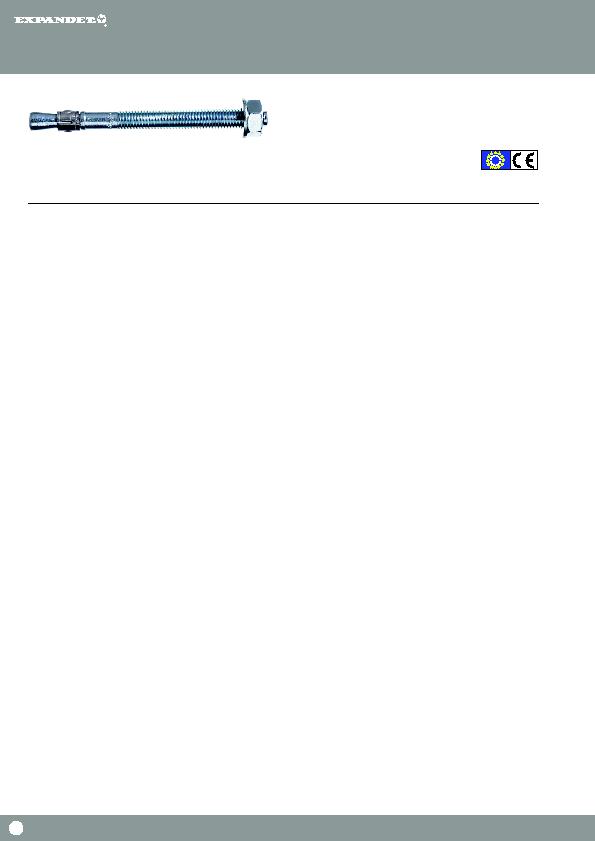

Expandet Throughbolt EXG II
For fixing of heavy objects like steel- and
wood structures, base plates and brackets in
non-cracked concrete.
Through fixing.
ETA approval also includes reduced setting
depth.
Zinc plated
ETA
