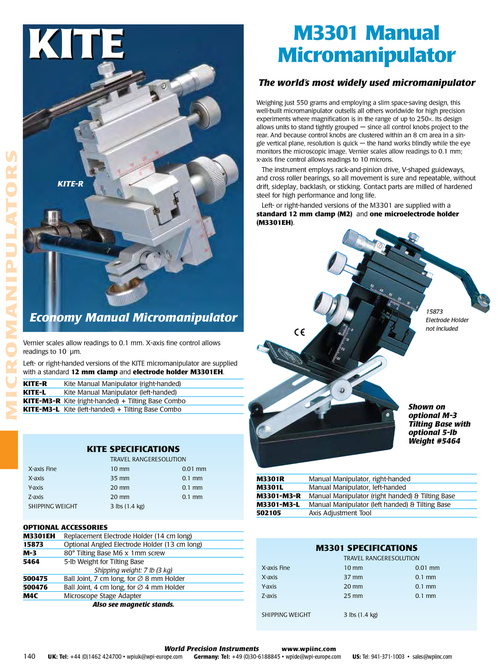

Kite M ICROMAN I PU LATORS M3301 Manual Micromanipulator The world’s most widely used micromanipulator Weighing just 550 grams and employing a slim space-saving design, this well-built micromanipulator outsells all others worldwide for high precision experiments where magnification is in the range of up to 250×. Its design allows units to stand tightly grouped — since all control knobs project to the rear. And because control knobs are clustered within an 8 cm area in a single vertical plane, resolution is quick — the hand works blindly while the eye monitors the microscopic image. vernier scales allow readings to 0.1 mm; x-axis fine control allows readings to 10 microns. KITE-R The instrument employs rack-and-pinion drive, v-shaped guideways, and cross roller bearings, so all movement is sure and repeatable, without drift, sideplay, backlash, or sticking. Contact parts are milled of hardened steel for high performance and long life. left- or right-handed versions of the M3301 are supplied with a standard 12 mm clamp (M2) and one microelectrode holder (M3301eH). Economy Manual Micromanipulator vernier scales allow readings to 0.1 mm. x-axis fine control allows readings to 10 µm. left- or right-handed versions of the kITe micromanipulator are supplied with a standard 12 mm clamp and electrode holder M3301eH. Kite-r Kite-l Kite-M3-r Kite-M3-l kite Manual Manipulator (right-handed) kite Manual Manipulator (left-handed) kite (right-handed) + Tilting base Combo kite (left-handed) + Tilting base Combo 15873 Electrode Holder not included Kite SPecificatioNS TrAvel rAnge resOluTIOn x-axis fine x-axis Y-axis z-axis sHIPPIng WeIgHT 10 mm 35 mm 20 mm 20 mm 3 lbs (1.4 kg) 0.01 mm 0.1 mm 0.1 mm 0.1 mm Shown on optional M-3 Tilting Base with optional 5-lb Weight #5464 M3301r M3301l M3301-M3-r M3301-M3-l 502105 Manual Manipulator, right-handed Manual Manipulator, left-handed Manual Manipulator (right handed) & Tilting base Manual Manipulator (left handed) & Tilting base Axis Adjustment Tool oPtioNal M3301eH 15873 M-3 5464 500475 500476 M4c acceSSorieS replacement electrode Holder (14 cm long) Optional Angled electrode Holder (13 cm long) 80° Tilting base M6 x 1mm screw 5-lb Weight for Tilting base Shipping weight: 7 lb (3 kg) ball Joint, 7 cm long, for ∅ 8 mm Holder ball Joint, 4 cm long, for ∅ 4 mm Holder Microscope stage Adapter Also see magnetic stands. M3301 SPecificatioNS TrAvel rAnge resOluTIOn x-axis fine x-axis Y-axis z-axis sHIPPIng WeIgHT 10 mm 37 mm 20 mm 25 mm 3 lbs (1.4 kg) 0.01 mm 0.1 mm 0.1 mm 0.1 mm 140 World Precision Instruments UK: Tel: +44 (0)1462 424700 • wpiuk@wpi-europe.com www.wpiinc.com Germany: Tel: +49 (0)30-6188845 • wpide@wpi-europe.com US: Tel: 941-371-1003 • sales@wpiinc.com
