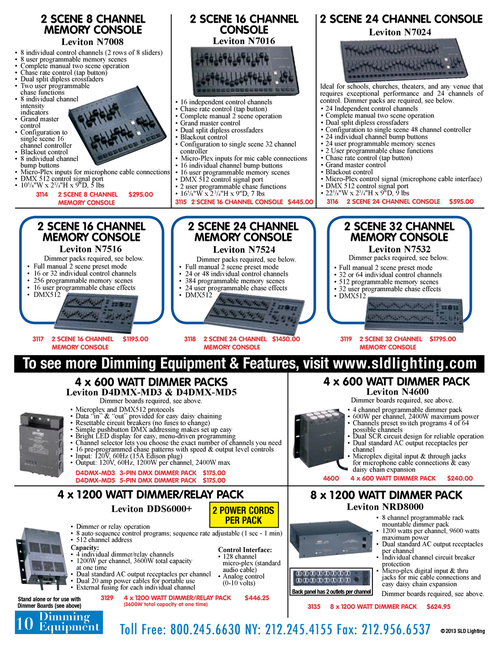

2 SCEnE 8 CHAnnEL MEMORy COnSOLE • 8 individual control channels (2 rows of 8 sliders) • 8 user programmable memory scenes • Complete manual two scene operation • Chase rate control (tap button) • Dual split dipless crossfaders • Two user programmable chase functions • 8 individual channel intensity indicators • Grand master control • Configuration to single scene 16 channel controller • Blackout control • 8 individual channel bump buttons • Micro-Plex inputs for microphone cable connections • DMX 512 control signal port • 105/8"W x 23/4"H x 9"D, 5 lbs 3114 2 SCENE 8 CHANNEL MEMORY CONSOLE $295.00 Leviton N7008 2 SCEnE 16 CHAnnEL COnSOLE Leviton N7016 2 SCEnE 24 CHAnnEL COnSOLE Leviton N7024 2 SCEnE, 8 CHAnnEL DMX 2 SCEnE, 12 CHAnnEL DMX MEMORy DIMMER COnSOLE MEMORy DIMMER COnSOLE Dimmer Packs required, see below. 2 SCEnE, 24 CHAnnEL DMX MEMORy DIMMER COnSOLE • 16 independent control channels • Chase rate control (tap button) • Complete manual 2 scene operation • Grand master control • Dual split dipless crossfaders • Blackout control • Configuration to single scene 32 channel controller • Micro-Plex inputs for mic cable connections • 16 individual channel bump buttons • 16 user programmable memory scenes • DMX 512 control signal port • 2 user programmable chase functions • 165/8"W x 2 3/4"H x 9"D, 7 lbs Ideal for schools, churches, theaters, and any venue that requires exceptional performance and 24 channels of control. Dimmer packs are required, see below. • 24 Independent control channels • Complete manual two scene operation • Dual split dipless crossfaders • Configuration to single scene 48 channel controller • 24 individual channel bump buttons • 24 user programmable memory scenes • 2 User programmable chase functions • Chase rate control (tap button) • Grand master control • Blackout control • Micro-Plex control signal (microphone cable interface) • DMX 512 control signal port • 225/8"W x 23/4"H x 9"D, 9 lbs 3116 2 SCENE 24 CHANNEL CONSOLE $595.00 • 2 different modes of operation: 2 scene x 8 channels or 1 scene x 16 channels • 2 scene standard operation makes it very versatile for small theaters, schools, churches, and small stage performances. • 8 built-in programs with 99 steps per program • 4 internal program buttons with several programs in each • Standard DMX512 • Midi output • 121/8"W x 31/4"H x 83/4"D SS8 2 SCENE, 8 CHANNEL CONTROLLER with MEMORY $199.00 Dimmer Packs required, see below. • 12 or 24 channel DMX operation • 4200 programmable scenes • 48 recordable programs • Midi In/Out & Thru • Standard 2 scene operation • DMX512 protocol with 3 pin XLR • 24 individual fader channels • Mix chases • Sound active via built in microphone or Line In • 19"W x 3"H x 101/2"D, 11 lbs SS24 2 SCENE, 12 CHANNEL CONTROLLER with MEMORY $249.00 Dimmer Packs required, see below. • 24 or 48 channel DMX operation • Ideal for large stages • Midi In/Out & Thru • Mix chases • Sound active via built in microphone or Line In • 48 individual fader channels • 96 recordable programs with 4200 programmable scenes • Standard 2 scene operation (2 x 24) • DMX-512 protocol with 3 pin XLR • 28"W x 4"H x 101/2"D, 15 lbs SS48 2 SCENE, 24 CHANNEL CONTROLLER with MEMORY $399.00 3115 2 SCENE 16 CHANNEL CONSOLE $445.00 2 SCEnE 16 CHAnnEL MEMORy COnSOLE Dimmer packs required, see below. • Full manual 2 scene preset mode • 16 or 32 individual control channels • 256 programmable memory scenes • 16 user programmable chase effects • DMX512 Leviton N7516 2 SCEnE 24 CHAnnEL MEMORy COnSOLE Dimmer packs required, see below. • Full manual 2 scene preset mode • 24 or 48 individual control channels • 384 programmable memory scenes • 24 user programmable chase effects • DMX512 Leviton N7524 2 SCEnE 32 CHAnnEL MEMORy COnSOLE Dimmer packs required, see below. • Full manual 2 scene preset mode • 32 or 64 individual control channels • 512 programmable memory scenes • 32 user programmable chase effects • DMX512 1 CHAnnEL DIMMER PACk • On-board & external dimmer slider • DMX512 • Mounting bracket • LED display • Two standard AC 3-prong Edison plugs • 3 pin XLR In/Out • Maximum power: 10A • 37/8"W x 27/8"H x 71/4"D, 3 lbs dP10 1 CHANNEL, 1000W dIMMER $109.00 Leviton N7532 Accessory for SS8, SS24 & SS48 above • 4 x 600 watt DMX Dimmer Pack • Zero crossing circuitry for protection of individual loads • Built in programs Features 2 • 2 Edison outlets per channel outlets • DMX 512 protocol Per Channel • 3-pin XLR connection • Individual 6 amp fuse for each channel • Max. load: 6 amps/channel, 15 amps total • 71/2"W x 3"H x 10"D, 5 lbs dP420 4 x 600W dMX dIMMER PACK 4 x 600 WATT DMX DIMMER PACk Connect Dimmer Boards to Dimmer Packs COnTROL CABLES To see more Dimming Packages, visit www.sldlighting.com Maximum output 1500 Watts per Pack 7861 PaCkagE INCLuDES: 1 #SS24 2 Scene, 12 Channel Console 3 #DP420 4 x 600W DMX Dimmer Packs 3 #50180 25' Control Cables 7861 $349.00 12 x 600 WATT dMX PACKAgE $651.00 $115.00 50177 5' 50179 10' 50180 25' 50181 50' 50182 100' CONTROL CONTROL CONTROL CONTROL CONTROL CABLE CABLE CABLE CABLE CABLE $8.50 $17.00 $19.00 $29.50 $46.25 3117 To see more Dimming Equipment & features, visit www.sldlighting.com Leviton D4DMX-MD3 & D4DMX-MD5 2 SCENE 16 CHANNEL MEMORY CONSOLE $1195.00 3118 2 SCENE 24 CHANNEL $1450.00 MEMORY CONSOLE 3119 2 SCENE 32 CHANNEL MEMORY CONSOLE $1795.00 8 CHAnnEL x 600W DMX PACkAGE Maximum output 1500 Watts per Pack 8600 PaCkagE INCLuDES: 1 #SS8 2 Scene, 8 Channel Console 2 #DP415 4 x 600W DMX Dimmer Packs 2 #50180 25' Control Cables 8600 8 x 600W dMX PACKAgE 12 CHAnnEL x 600W DMX PACkAGE 4 x 600 WATT DIMMER PACkS 4 x 600 WATT DIMMER PACk Dimmer boards required, see above. • 4 channel programmable dimmer pack • 600W per channel, 2400W maximum power • Channels preset switch programs 4 of 64 possible channels • Dual SCR circuit design for reliable operation • Dual standard AC output receptacles per channel • Microplex digital input & through jacks for microphone cable connections & easy daisy chain expansion 4600 4 x 600 WATT dIMMER PACK $240.00 Dimmer boards required, see above. • Microplex and DMX512 protocols • Data “in” & “out” provided for easy daisy chaining • Resettable circuit breakers (no fuses to change) • Simple pushbutton DMX addressing makes set up easy • Bright LED display for easy, menu-driven programming • Channel selector lets you choose the exact number of channels you need • 16 pre-programmed chase patterns with speed & output level controls • Input: 120V, 60Hz (15A Edison plug) • Output: 120V, 60Hz, 1200W per channel, 2400W max d4dMX-Md3 3-PIN dMX dIMMER PACK $175.00 d4dMX-Md5 5-PIN dMX dIMMER PACK $175.00 Leviton N4600 24 CHAnnEL x 600W DMX PACkAGE 16 CHAnnEL x 1200W PACkAGE 4 x 1 200 WATT DIMMER/RELAy PACk Leviton DDS6000+ • Dimmer or relay operation • 8 auto sequence control programs; sequence rate adjustable (1 sec - 1 min) • 512 channel address Capacity: Control Interface: • 4 individual dimmer/relay channels • 128 channel • 1200W per channel, 3600W total capacity micro-plex (standard at one time audio cable) • Dual standard AC output receptacles per channel • Analog control • Dual 20 amp power cables for portable use (0-10 volts) • External fusing for each individual channel Stand alone or for use with Dimmer Boards (see above) 2 PoWER CoRDS PER PACK 8 x 1200 WATT DIMMER PACk • 8 channel programmable rack mountable dimmer pack • 1200 watts per channel, 9600 watts maximum power • Dual standard AC output receptacles per channel • Individual channel circuit breaker protection • Micro-plex digital input & thru jacks for mic cable connections and easy daisy chain expansion Back panel has 2 outlets per channel Dimmer boards required, see above. 3135 8 x 1200 WATT dIMMER PACK $624.95 © 2013 SLD Lighting Leviton NRD8000 7862 PaCkagE INCLuDES: 1 #SS48 2 Scene, 24 Channel Console 6 #DP420 4 x 600W Dimmer Packs 6 #50180 25' Control Cables Maximum output 1500 Watts per Pack 7862 24 CHANNEL x 600W dMX PACKAgE $1203.00 Maximum output 3600 Watts per Pack 7730 7730 PaCkagE INCLuDES: 1 #3115 2 Scene, 16 Channel Console 4 #3129 4 x 1200W Dimmer Packs 4 #50181 50' Control Cables $2348.00 3129 4 x 1200 WATT dIMMER/RELAY PACK (3600W total capacity at one time) $446.25 16 CHANNEL x 1200W PACKAgE 10 Dimming Equipment Toll Free: 800.245.6630 NY: 212.245.4155 Fax: 212.956.6537 © 2013 SLD Lighting www.sldlighting.com See our website for weekly sales Dimming Equipment 11
